Trend T12EK 2300W 1/2" Variable Speed Plunge Router 230V
SKU: TRET12EK | EAN: 5027654076279
You may also need these

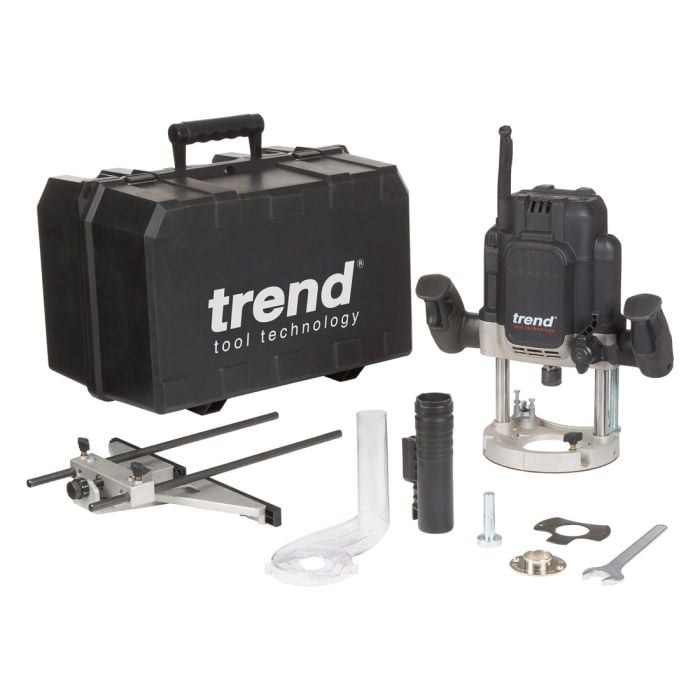

what's in the box
- 1x T12EK Workshop Router
- 1x 1/2" Collet
- 1x Side Fence
- 1x Guide Brush Plate
- 1x 30mm Guide Brush
- 1x 22m Spanner
- 1x Guide Bush Pin
- 1x Top-Mount Extraction Adapter
- 1x Cyclone Dust Adapter
- 1x Blow Moulded Case
Notes From PTW Expert
Powerful 2300W Motor delivers consistently high power, torque and speed, and features soft-start to prevent kick-back
Overview
Trend T12EK 2300W 1/2" Variable Speed Plunge Router 230V
The Trend T12EK is a high-performance trade-focused plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts.
FEATURES
- Powerful 2300W Motor delivers consistently high power, torque and speed, and features soft-start to prevent kick-back
- 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling
- Trend Base Configuration includes a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories
- Precision Centring System features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs
- Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles
- Automatic Power Shut-Off prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted
- 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications
- Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’
- Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched
- Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment
- Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment
- Integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off
- Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
- Automatic LED Work Lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations
- Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action
- Anti-Scratch Base Plate Low-friction, screw-mounted, replaceable phenolic base plate
- Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents
- Wide Base Aperture to suit large profile and jointing cutters
- ER Style Collet features a double-locking safety feature to prevent accidental cutter ejection and a multi-slit profile for concentric clamping to the cutter shank
- 3-Position Rotating Turret is used to pre-set plunge depth limits for fast, repeatable batch and stepped cutting
- Plunge Depth Limiter is easy to set and prevents over-cutting
- Spindle Lock for quick and easy router cutter changes
SPECIFICATION
- Rating: Professional/Trade
- Voltage: 240V
- Plunge Stroke: 0-80mm
- Power Input: 2300W
- Standard Collet Dia.: 1/2"
- No Load Speeds: 9,000-22,000rpm
- Dust Spout Size ID: 35mm
- Guide Bush Dia. Supplied: 30mm
- Cutter Diameter Max. (Hand Held): 50mm
- Base Aperture Size: 70mm
- Rod Diameter: 10mm
- Rod Length: 360mm
- Rod Centers: 100mm
- Weight: 6.4Kg
NOISE & VIBRATION
- Sound pressure Lpa: 95.1 dB(A)1
- Acoustic Pressure Lwa: 106.1 dB(A)2
- Hand Arm Vibration: < 2.1m/s²
