Trend RS/JIG Router Surfacing Jig 511mm

Trend RS/JIG Router Surfacing Jig 511mm

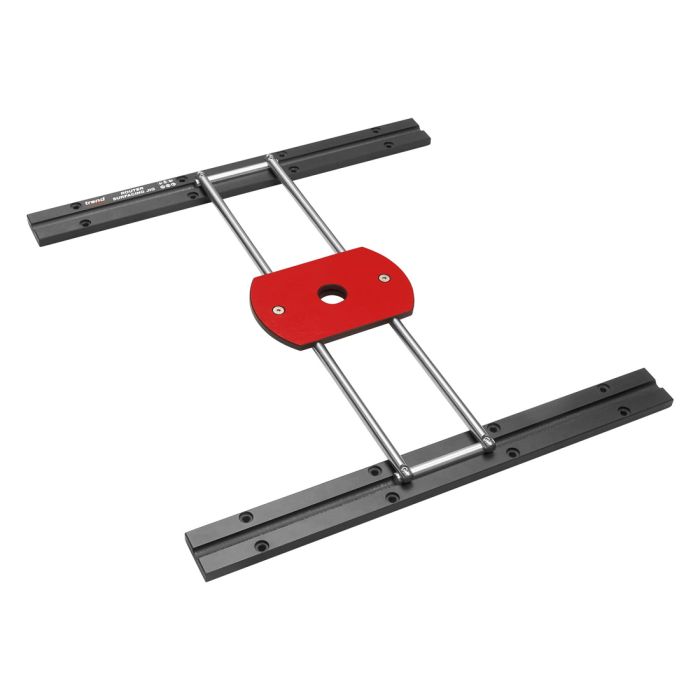

This is an adaptable compact jig for flattening, surfacing and trenching work on wide or irregular shaped material.

FEATURES

• Ideal for wider materials - surfaces and flattens stock up to 400mm wide
• End grain routing - routing cut across the surface of end grain for clean finish
• Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts
• Bi-direction cutting - can be used across or along the grain
• High Pressure Laminate running rails and router cradle for wear-free performance, accuracy and durability
• Twin 12mm stainless steel rails - supports heavier routers up to 7Kg weight without distortion
• Fixed position cradle can be locked to the bars for single axis movement such as trenching cuts
• No fixed sub base required - simple guide bush location cradle for fast set up and removal
• Links to the cradle with 30mm guide bush for compatibility with multiple brands and router sizes
• Extendable design - additional running rails can be added for longer sleds
• Slim modular design - easily stores away saving workshop space

SPECIFICATION

• Length: 511 mm
• Width: 50 mm
• Thickness: 12 mm
• Router Base Plate Bore: 30 mm
• Max. Router Weight: 7 kg
• Weight: 2.996 kg
