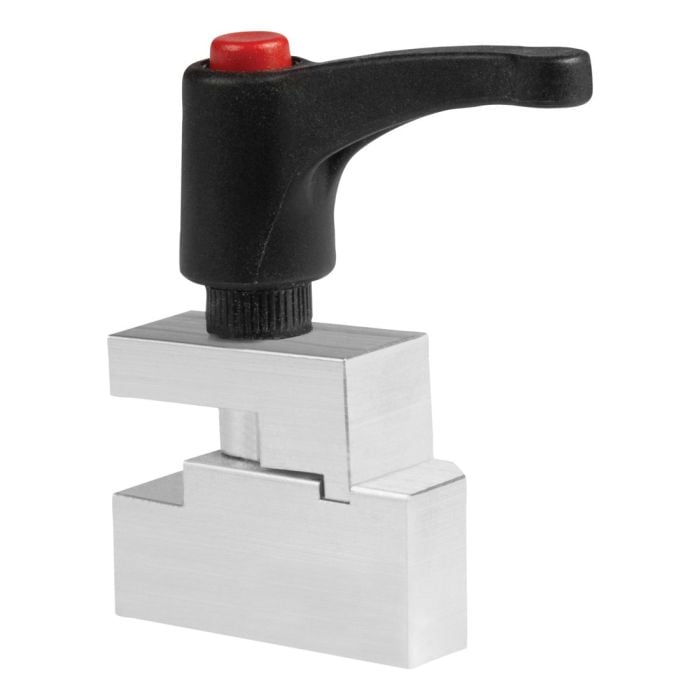

Trend KWJ/OSD Worktop Jig True Cut Out Of Square Device

Trend KWJ/OSD Worktop Jig True Cut Out of Square Device

FEATURES

• Adaptable angle range - can be used for acute and obtuse wall angles up to 25 degrees out of square
• Works with Trend KWJ 750P Pro, KWJ 900P Pro, KWJ 700, KWJ 700S, KWJ 900 worktop jigs
• Easy setup and fast alignment to the worktop edge ensures correct backset position
• Simple 4 step procedure - Measure, Mark, Clamp, Cut
• Precision fit - front edge pivot point alignment ensures the backset is correctly set to match the female cut
• Works with any worktop edge profile from square edge to full bullnose
• Bevelled corner design to allow deeper profiles to be set up and cut on standard backset jigs
• Made from solid aluminium for maximum lifespan and accuracy
• Two-part construction with keyed interlock to swivel easily into place and clamp firmly onto the jig without slipping
• High quality spring-loaded handle for fast adjustment and secure lock

SPECIFICATION

• Out of Square Capacity: Up To 25 Degrees
• Max. Jig Thickness: 12mm
• Height: 73mm
• Width: 73mm
• Depth 17mm
• Weight: 0.12kg
