Trend KWJ750P Pro Multi-Material Worktop Jig 750mm

SKU: TREKWJ750P | EAN: 5027654071076
1 Review
| Add review
£139.00 inc VAT
£115.83 ex VAT
Overview

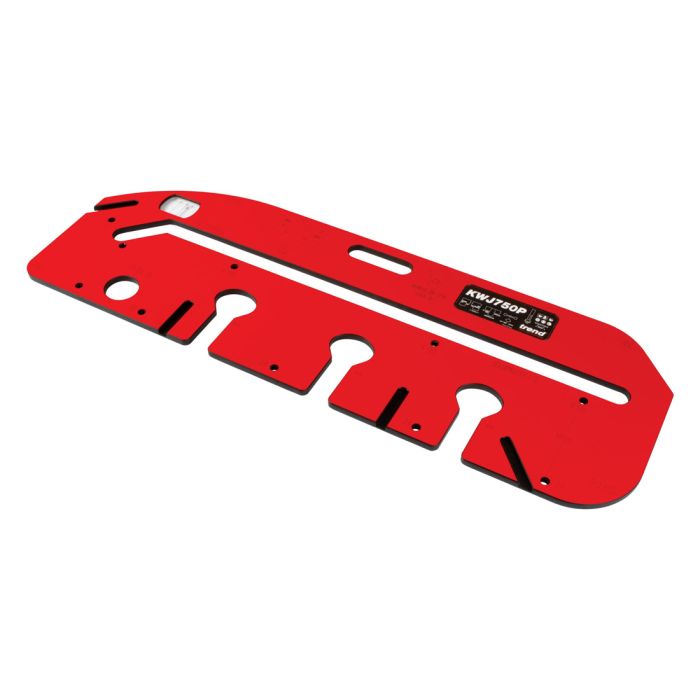

Trend KWJ750P Pro Multi-Material Worktop Jig 750mm

Multi-material, Multi-function, Multi-backset Worktop Jig for fast, perfect jointing on any worktop from 150mm to 750mm with unique easy set window.

FEATURES

  • Use with worktops of up to 750mm
  • Front edge setting: All settings are done from the front edge, eliminating any discrepancies from scribing or when using non-standard width worktops
  • Easy set reference window: Fast setup for any backset - simply align to a measured line
  • 5 backset options: Choose from 3mm, 5mm, 10mm, 24mm or 35mm to meet the demands of new materials, edge profiles and trends
  • Flush edge compatibility: Allows worktops to be cut flush with door faces for handleless contemporary styles, without needing additional measuring or marking up
  • Single pass joint cutting on narrower backsets with thinner worktops: This minimises strain on the router and extends cutter life
  • Fast jointing: Cuts a full male and female joint in 15 minutes, including setup time
  • Multiple worktop material compatibility: including compact laminate, composite, solid wood and chipboard laminate
  • No set worktop width restriction: no need for alignment pins for worktop widths
  • Frustration free setup: the setup process is simple and intuitive - just measure, mark, clamp and cut
  • Edge profile compatibility: covers square edge, small radius, Postform radius and bullnose profiles
  • Clamp recesses: for below the surface clamping for unrestricted routing with plunge saw clamps

SPECIFICATION

  • Length: 985 mm
  • Width: 335 mm
  • Thickness: 12 mm
  • Weight: 4.73 kg
  • End Cut: 45 degrees
  • Corner Radius: 40 mm
  • Corner Radius: 100 mm
  • Corner Radius: 400 mm
  • Corner Mitre Joint: 45 degrees
  • Female Cut Material Width Loss (Inset): Variable

What's in the box

  • 1x KWJ750P Multi-Material Worktop Jig
  • 4x ABS Plastic Pins

Notes From PTW Expert

Store and transport your jig with the CASE/700 carry case

1 Year Warranty*

May also need

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Trend M/KWS01 Kitchen Worktop Jig Offset Scriber

In stock - delivered in 2 - 3 days
£26.10 inc VAT £21.75 ex VAT
Trend VJS/CK/L Varijig System Ex Long Clamp Pair

In stock - delivered in 2 - 3 days
£50.60 inc VAT £42.17 ex VAT
Bosch Professional GOF 1600 CE Plunge-Cutting 1/4" + 1/2" Router

Out of stock
From £0.00 inc VAT £0.00 ex VAT
DeWalt DW625EKT 1/2" Variable Speed Router 2000w in TSTAK Case

Out of stock
From £349.95 inc VAT £291.62 ex VAT
Trend WRT Floor Standing Workshop Router Table 230v

In stock - delivered in 2 - 3 days
£436.30 inc VAT £363.58 ex VAT

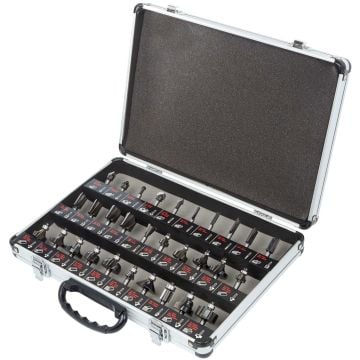

Trend SET/SS31X1/4TC Router Cutter Starter Set x30 Pcs
