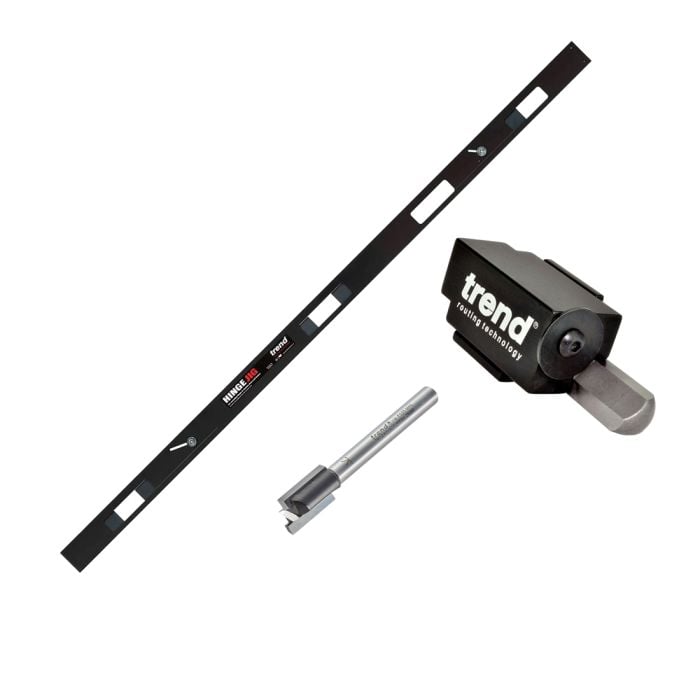

This all-in-one bundle is designed for professional and DIY hinge installation. It includes the Trend HINGE/JIG Contractor Hinge Recessing Jig for precise hinge placement, the C/CHISEL Corner Chisel HSS for clean, accurate corners, and the TR12X1/4TC Router Cutter for smooth, reliable cuts. Perfect for achieving professional-quality results quickly and easily.
HINGE/JIG FEATURES
Four apertures for fire door requirements
No need for marking out in the conventional way
Quick & simple to set-up as the hinge is used as the pattern
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
Use with a light duty plunge router with 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Angled position slots to prevent creep
Unibase may be needed
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160
HINGE/JIG HINGE SIZES SPECIFICATION
Length Min.: 2 5/8" (67 mm)
Length Max.: 5" (127 mm)
Width Min.: 3/8" (9.5 mm)
Width Max.: 1 3/8" (35 mm)
Width Max. in 35mm Rebate: 20 mm
Width Max. in 44mm Rebate: 30 mm
HINGE/JIG DOOR SIZES POSSIBLE
Height Min.: 6' 5" (1955 mm)
Height Max.: 2100 mm*
Thickness Min.: 5/8" (16 mm)
Weight: 2.9 kg
Jig Overall Length: 1957 mm
Plate Thickness: 2 mm
Fixed Stop Max. Thickness: 25 mm**
C/CHISEL FEATURES
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
Light weight aluminium body design
Can be used with the Trend Hinge Jig
Can be resharpened
C/CHISEL SPECIFICATION
Length: 70 mm
Width: 29 mm
Weight: 100 g
TR12X1/4TC FEATURES
For housing, grooving and mortising
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
PTFE coated, indicated by distinctive black colouring.
Can be used on hardwood & softwood, fibreboard, plywood and particle board
Etched dimensions on extra long 40mm shanks
Solid carbide insert and centre tip for drilling
TR12X1/4TC SPECIFICATION
Shank: 1/4"
Cutting Diameter (D): 12 mm
Cutting Length (C): 19 mm
Overall Length (OL): 70 mm
Net Weight: 0.031kg
What's in the box
1x HINGE/JIG Single Piece Contractor Hinge Recessing Jig
1x C/CHISEL Corner Chisel HSS
1x TR12X1/4TC TCT Two Flute Cutter
Notes From PTW Expert
This all-in-one bundle is designed for professional and DIY hinge installation
