Trend CAB/JIG/B 35mm Concealed Cabinet Hinge Jig

Trend CAB/JIG/B 35mm Concealed Cabinet Hinge Jig

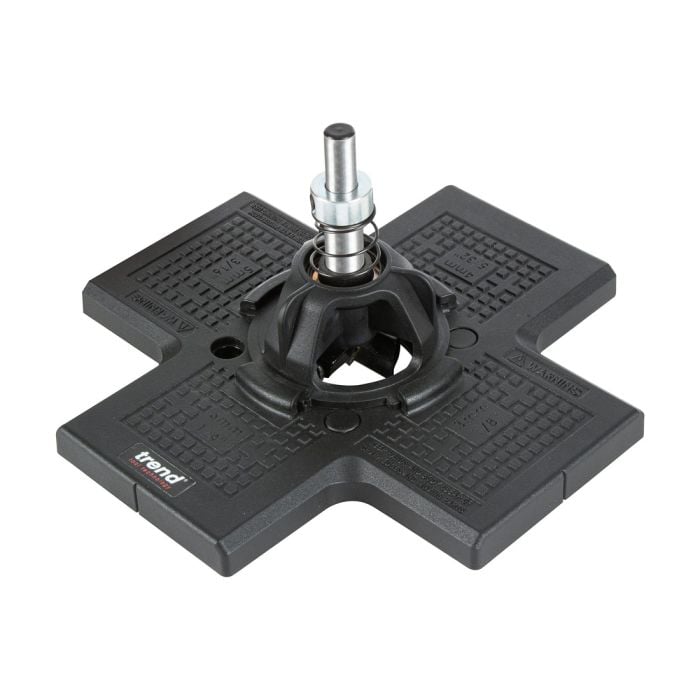

The Trend CAB/JIG/B 35mm Concealed Cabinet Hinge Jig is a precision drilling jig for installing concealed cabinet (‘euro-style’) hinges accurately and quickly. Features tool-free inset positioning for rapid setup and pilot hole guides to ensure perfect hinge alignment. For use with a standard Combi Drill.

FEATURES

• 3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door
• In-built Depth Stop to prevent over-drilling
• Pilot Hole Plate ensures hinges are mounted perfectly square
• Pin Guide System minimises setup time & guarantees positional accuracy
• Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength
• Spring Loaded Drill Guide prevents machine bit from damaging door surfaces
• Large Clamping Area to secure the jig during use
• Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF

SPECIFICATION

• Insets: 3, 4, 5, 6mm
• Diameter: 35mm
