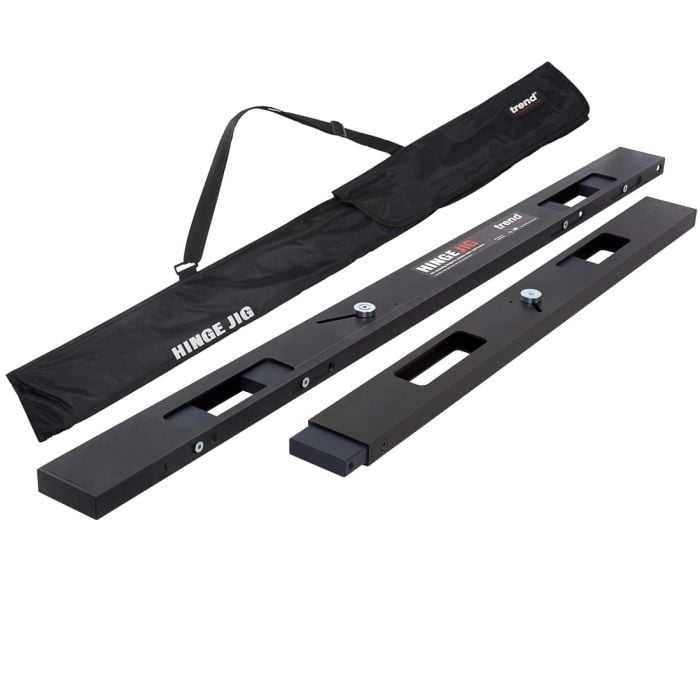

Trend H/JIG/A Hinge Jig Two Part Template Set In Carry Case

Trend H/JIG/A Hinge Jig Two Part Template Set In Carry Case

The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router.

FEATURES

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly
• Used on-site & in joinery shops to increase productivity with excellent results
• Four apertures for fire door requirements
• No need for marking out in the conventional way
• Quick & simple to set-up as the hinge is used as the pattern
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
• Can be used on both inside and outside doors, and on maximum 25mm thick fixed stops
• Use with a light duty plunge router with 1/4 inch collet
• Long reach router cutter required, 12mm diameter with 70mm overall length
• Angled position slots to prevent creep
• Unibase may be needed

SPECIFICATION

• Length Min.: 2 5/8" (67 mm)
• Length Max.: 5" (127 mm)
• Width Min.: 3/8" (9.5 mm)
• Width Max.: 1 3/8" (35 mm)
• Width Max. in 35mm Rebate: 20 mm
• Width Max. in 44mm Rebate: 30 mm
• Door Sizes Possible: Height Min.: 6' 5" (1955 mm)
