This handy kit includes everything you need for precise hinge installation. It features the H/JIG/C 2 Piece Skeleton Hinge Jig for accurate hinge recess routing, the C/CHISEL Corner Chisel for clean, square corners, and the TR12X1/4TC Two Flute Router Cutter for smooth, professional cuts. Perfect for carpenters, joiners, and DIY enthusiasts seeking accuracy and efficiency in door fitting.
H/JIG/C FEATURES
It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Fully adjustable apertures for fire door requirements and renovation work
Idea for fitting a new door in an old frame
No need for marking out in the conventional way
Quick & simple to set-up as the hinge is used as the pattern
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
Use with a light duty plunge router with 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
H/JIG/C SPECIFICATION
Hinge Sizes Possible:
- Length (Min.): 2 5/8" (67 mm)
- Length (Max.): 5" (127 mm)
- Width (Min.): 1/2" (12.7 mm)
- Width (Max.): 1 3/8" (35 mm)
Door Sizes Possible:
- Height (Min.): 6' 5" (1956 mm)
- Height (Max.): 2100 mm* (6' 10"*)
- Thickness (Min.): 5/8" (16 mm)
- Thickness (Max.): 2" (51 mm)
Weight: 2.9 kg
Jig Overall Length 1956 mm
Patent No.: GB2285410 / GB1106608.1
C/CHISEL FEATURES
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
Light weight aluminium body design
Can be used with the Trend Hinge Jig
Can be resharpened
C/CHISEL SPECIFICATION
Length: 70 mm
Width: 29 mm
Weight: 100 g
TR12X1/4TC FEATURES
For housing, grooving and mortising
Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
PTFE coated, indicated by distinctive black colouring.
Can be used on hardwood & softwood, fibreboard, plywood and particle board
Etched dimensions on extra long 40mm shanks
Solid carbide insert and centre tip for drilling
TR12X1/4TC SPECIFICATION
Shank: 1/4"
Cutting Diameter (D): 12 mm
Cutting Length (C): 19 mm
Overall Length (OL): 70 mm
Net Weight: 0.031kg

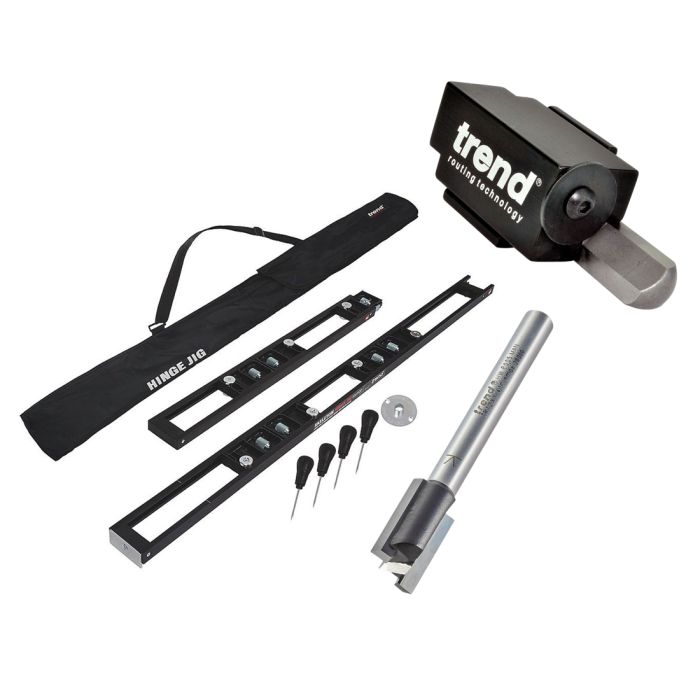

What's in the box
1x 2 Part Skeleton Hinge Jig
4x Bradawls
1x 16mm Guide Bush
1x Carry Bag
1x C/CHISEL Corner Chisel HSS
1x TR12X1/4TC TCT Two Flute Cutter
Notes From PTW Expert
*Please note for doors over 2040mm the bottom hinge will be higher than 9" up
