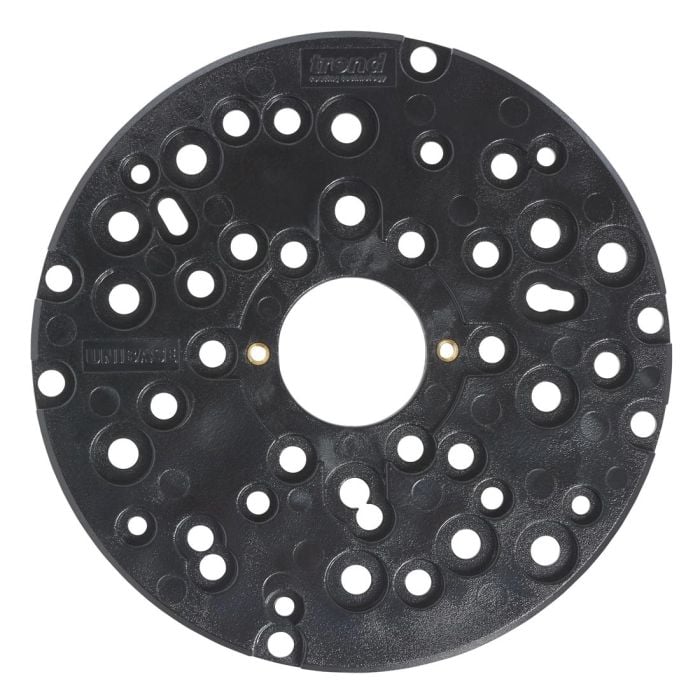

Trend UNIBASE Universal Sub-Base With Pins & Bush

Trend UNIBASE Universal Sub-Base With Pins & Bush

The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.

Ideal for hinge jig and lock jig.

FEATURES

• Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base
• Suits collet sizes 1/4", 8mm, 12mm and 1/2"
• Instructions for fitting
• The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available

SPECIFICATION

• Diameter: 170 mm
• Thickness: 8 mm
• Bore: 39 mm
• Recess: 60 mm
• Screw Thread: 2BA
