Trend H/JIG/C 2 Piece Skeleton Hinge Jig
what's in the box

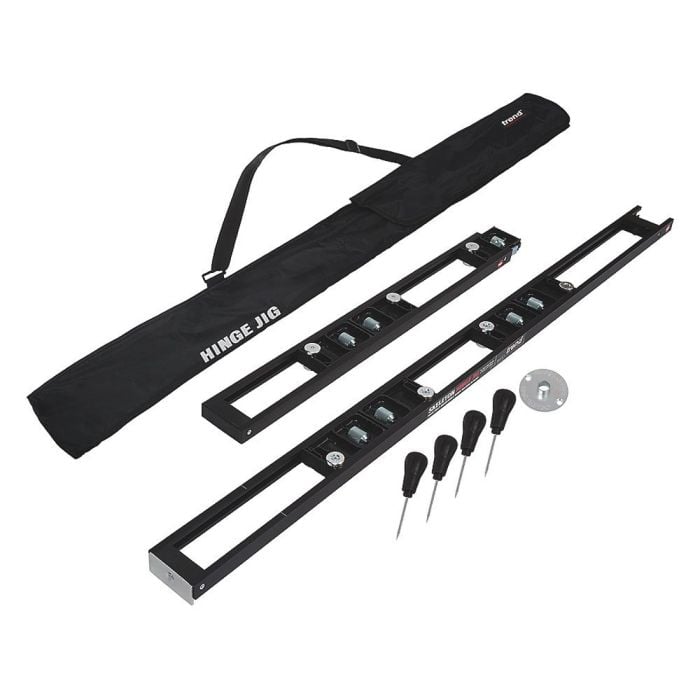

- 1x 2 Part Skeleton Hinge Jig
- 4x Bradawls
- 1x 16mm Guide Bush
- 1x Carry Bag
Notes From PTW Expert
*Please note for doors over 2040mm the bottom hinge will be higher than 9" up
T4EK router requires a Trend Unibase or GB/T4/160 Trend Guide Bush 16mm
Overview
Trend H/JIG/C 2 Piece Skeleton Hinge Jig
The Trend Skeleton Hinge Jig is a 2-part, adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. It is easy to use with minimal setting-up time, ensuring that the job can be completed accurately and quickly. It is ideal for use on-site and in joinery shops to increase productivity with excellent results.
The jig has fully adjustable apertures for fire door requirements and renovation work. It is ideal for fitting a new door into an old frame, and is suitable for timber based doors and square butt hinges.
The jig is supplied with a carry bag, bradawls and a special 16mm guide bush. The recommended router cutters for use with the jig are Refs. 3/8LX1/4TC, TR12X1/4TC or C019AX1/4TC. The cutters must have a 12.0mm diameter and a minimum overall length of 70mm.
FEATURES
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly
- Used on-site & in joinery shops to increase productivity with excellent results
- Fully adjustable apertures for fire door requirements and renovation work
- Idea for fitting a new door in an old frame
- No need for marking out in the conventional way
- Quick & simple to set-up as the hinge is used as the pattern
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
- Use with a light duty plunge router with 1/4 inch collet
- Long reach router cutter required, 12mm diameter with 70mm overall length
- Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
SPECIFICATION
- Hinge Sizes Possible:
- - Length (Min.): 2 5/8" (67 mm)
- - Length (Max.): 5" (127 mm)
- - Width (Min.): 1/2" (12.7 mm)
- - Width (Max.): 1 3/8" (35 mm)
- Door Sizes Possible:
- - Height (Min.): 6' 5" (1956 mm)
- - Height (Max.): 2100 mm* (6' 10"*)
- - Thickness (Min.): 5/8" (16 mm)
- - Thickness (Max.): 2" (51 mm)
- Weight: 2.9 kg
- Jig Overall Length 1956 mm
- Patent No.: GB2285410 / GB1106608.1
