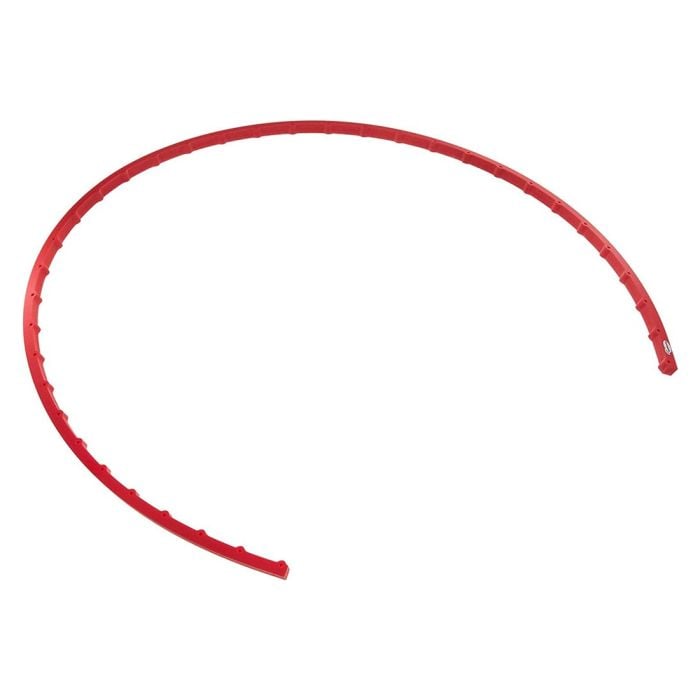

Trend CURV/8X500 Mini Flexible Curve Guide 8mm x 500mm
This Trend mini flexible curve guide is a compact tool for creating a template that lets a curved shape be routed repeatedly with precision, producing round, segmental or elliptical arch shapes, curves and cutouts. It's used with a router and a bearing-guided cutter, or with a guide bush and an unguided cutter, and is screwed to a rough-cut oversize template using the included fixing screws before the final shape is routed. Designed for MDF boards up to 10mm thick, it needs an 8mm user-made spacer fitted to the underside of the router to keep it stable while following the curve. At 500mm, this is the more compact version for smaller arches and cutouts.
FEATURES
Produces round, segmental or elliptical arch shapes, curves and cutouts
For use with a router and bearing guided cutter or guide bush
Fixing screws included for attaching to a template
Designed for MDF boards up to 10mm thick
Requires an 8mm spacer fitted to the router underside
SPECIFICATION
Width (excl. holes): 8mm
Length: 500mm
Inside radius min.: 30mm
Outside radius min.: 35mm
Material max. thickness: 10mm
Fixing screws: 2.5mm x 16mm Pozi
What's in the box
1x Mini Flexible Curve Guide, 8 x 500mm
Fixing Screws
Notes From PTW Expert
The more compact version, handy for smaller arches and cutouts
