Trend T1EPS 710W 1/4" Dual-Base Trim & Plunge Router 240v

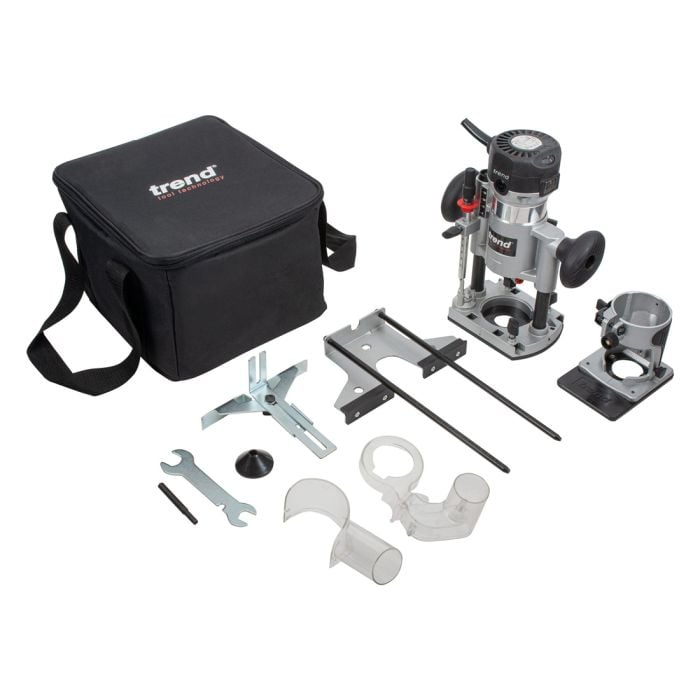

what's in the box
- 1x Trend 1/4" Dual-Base Trim & Plunge Router 710W, 210V
Notes From PTW Expert
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications
Overview
Trend T1EPS 710W 1/4" Dual-Base Trim & Plunge Router 240v
Equipped with a 710W motor, this variable 6-speed router is designed with a soft-start feature to prevent kick-back and ensure the protection of the workpiece. It offers plunge and trim base options to cater to a wide range of applications. The extended trim base enhances stability for tasks such as edge rebating, grooving, and moulding.
The plunge base includes a guide bush centralising feature for improved accuracy and precision when using jigs and templates. For precision jointing and inlaying tasks, the router features a micro-adjustable depth setting. The quick-release plunge lock allows for fast and controlled plunge routing.
FEATURES
- Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth
- Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation
- Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs
- 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications
- Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank
- Fine Height Adjuster: with an easy-to-read 0.2mm increment display for precision depth adjustments
- Height-Adjustable 3-Position Rotating Turret:for fast, repeatable batch and stepped cutting
- Compact Inclined Handles: feature a soft grip moulding for comfortable operationOffset Dust Extraction Spout:for an unimpeded view of the workpiece
- Compatible with Trend Guide Bushes for jig use, templating and inlaying
- Adjustable Side Fences for templating and edge rebating.
SPECIFICATION
- Motor Power: 710W
- AC Voltage: 240V
- Supplied Collet Size: 1/4"
- Plunge Stroke (Max): 60mm
- Cutter Height Adjustment - Trim Base: 37mm
- No Load Speed: 10,000-30,000rpm
- Supplied Guide Bush: 16mm (GB160)
- Fence Rod Length: 300m
- Fence Rod Centres: 84mm
- Fence Rod Diameter: 8mm
- Base Aperture Diameter: 40mm
- Cutter Diameter (Max): 35mm
- Dust Spout Internal Diameter: 35mm
- Weight of Base - Trim: 0.32kg
- Weight of Base - Plunge: 1.35kg
- Weight of Motor Body: 1.49kg
NOISE & VIBRATION
- Sound Pressure (Lpa): 85 dB(A)
- Acoustic Pressure (Lwa): 96 dB(A)
- Hand / Arm Vibration -Trim: 4.6m/s2
- Hand / Arm Vibration - Plunge: 4.5m/s2
- Power Cable Length: 3m
- Router Table Compatible: No
