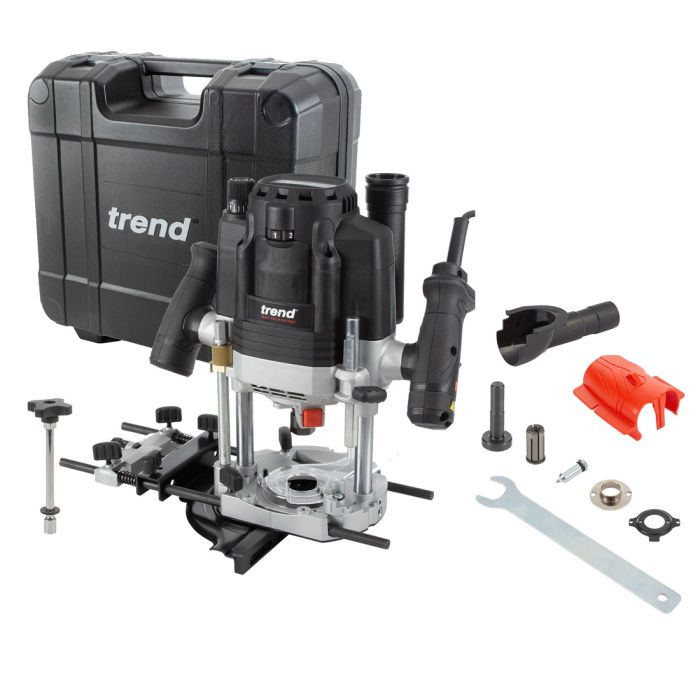

Trend T8EK 2200W 1/2" Dual Mode Plunge Router 110v

Trend T8EK 2200W 1/2" Dual Mode Plunge Router 110v

The T8EK is trade-focused and engineered for both hand-held and router table use. Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling. With a 80mm plunge depth - ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling, The twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations. 110v.

FEATURES

• Precision centring system to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs
• Router table compatible with height adjuster to easily and safely change cutting height from above the table
• Constant speed control monitors the spindle rpm and adjusts automatically to maintain cutter speed for smooth and consistent cuts
• 11-Level variable speed control offers precise control across a wide range of cutters, materials and applications
• Vertical extraction spout prevents extraction hoses from ‘snagging’ on jigs and materials
• Extra-wide 75mm base aperture to accommodate over-size cutters, such as panel raisers
• 7-Position rotating turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting
• Micro-adjustable fence with extraction port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
• Fine height adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment
• Trend base configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories
• Ergonomic inclined handles feature an integrated power trigger and a soft grip moulding for comfortable operation
• Double locking collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank

SPEIFICATION

• Duty Rating: Medium/Trade
• Duty Rating: Medium/Trade
• Motor Power: 2200W
• AC Voltage: 110v
• Plug Type: UK 3 pin
• Supplied Collet Size: 1/2"
• Plunge Stroke (Max): 80mm
• No Load Speed: 10000-26000rpm
• Supplied Guide Bush: 30mm
• Fence Rod Length: 360mm
• Fence Rod Centres: 84mm
• Fence Rod Diameter: 8mm
• Base Aperture Diameter: 75mm
• Cutter Diameter (Max): 50mm
• Dust Spout Internal Diameter: 35mm
• Weight (Net): 5.8kg
• Power Cable Length: 3m

NOISE & VIBRATION

• Sound Pressure (Lpa): 94.1 dB(A)
• Acoustic Pressure (Lwa): 105.1 dB(A)
• Hand/Arm Vibration: <3.8m/s2
