All-metal Pocket Hole Jig for drilling 9.5mm pocket holes in a range of material thicknesses. Twin 30mm centred pocket holes are ideal for large builds such as wardrobes, bookcases and cabinets. Can be bench-mounted for batch work or guides can be used independently for in-situ internal & external applications.
FEATURES
Full Length Hardened Drill Guide Bushes for long life and accurate drilling
Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure
Drill Bit Setting Turret for setting the correct drill depth to the material thickness
Work Support Rods prevent twisting when drilling longer material
Removable Drilling guides allows the column to be used separately for repair applications
Guide Locking Knobs lock the drilling guide in place once height has been adjusted
Dust Collection Port efficiently clears dust and debris for faster, cleaner drilling
On-Board Adjustable Clamp with quick-release mechanism
Non-Marring Clamp Pad to prevent pressure marks on the workpiece
T-Slot Clamp Guide supports the use of rail clamps to securely hold the jig to a work surface
Countersink Screw positions allows the jig to be screwed to a base board for extra support
Custom Carry Bag designed to optimise storage space
SPECIFICATION
Material Thickness Min: 12.7 mm
Material Thickness Max: 38 mm
Material Width Min: 38 mm
Hole Pitch: 30 mm
Drill Diameter: 9.5 mm
Square drive Bit Size: No.2
Dust Spout ID: 30 mm
Underside T Slot: 12.2/8.4mm x 6mm
Drilling Angle: 15 degrees
Screw Size: Fine No.7 x 30 mm
Screw Sizes: Coarse No.7 x 25 mm, No.7/8 x 30 mm, No.8 x 38 mm, No.8 x 50 mm, No.8 x 63 mm

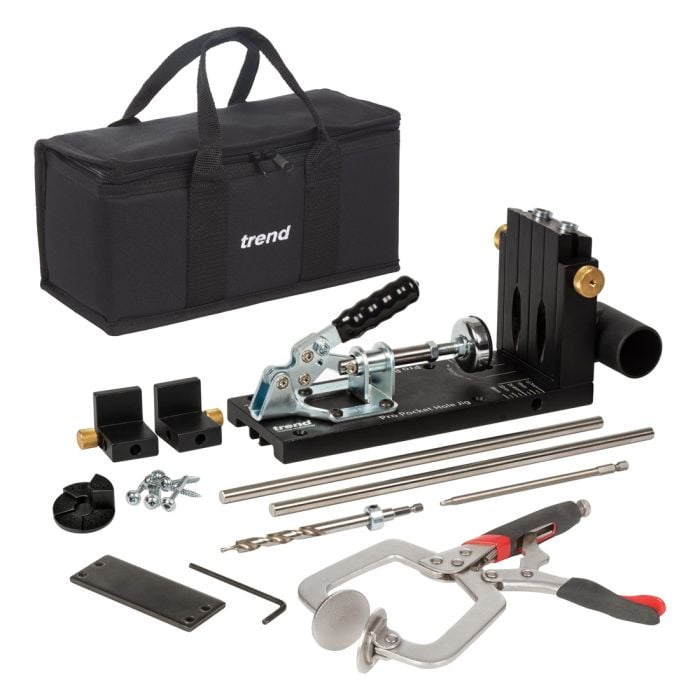

What's in the box
1x PH/Jig Pocket Hole Jig
10x No.7 x 25mm / 1" Coarse
30x No.7 x 30mm / 1-1/4" Fine
30x No.7/8 x 30mm / 1-1/4" Coarse
10x No.8 x 38mm / 1-1/2" Coarse
10x No.8 x 50mm / 2" Coarse
10x No.8 x 63mm / 2-1/2" Coarse
1x Face Clamp
1x HSS Drill Bit With Collar
1x 150mm Square Drive Bit
1x Hex Key 3mm A/F
2x Workpiece Support
1x Carry Case
Notes From PTW Expert
Workpiece can be handled immediately after gluing & screwing creating time saving benefits
