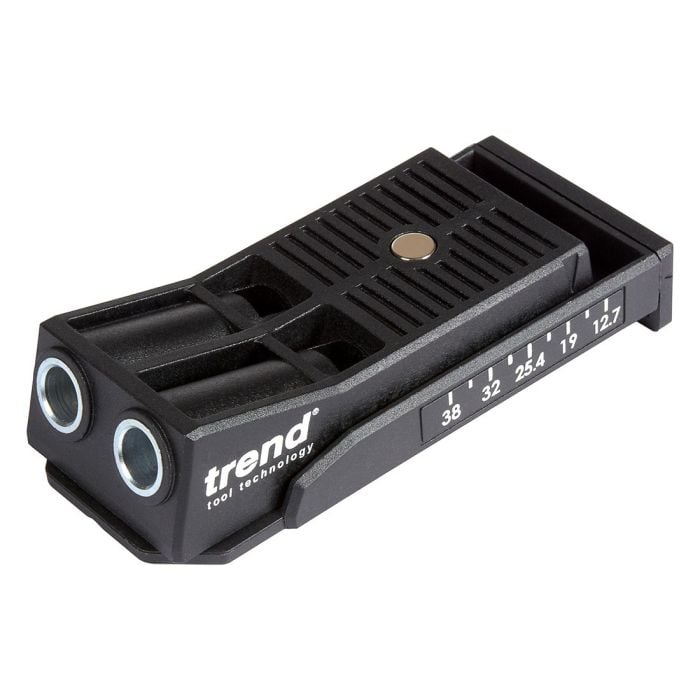

Trend PH/JIG/C Twin Pocket Hole Jig

Trend PH/JIG/C Twin Pocket Hole Jig

Adaptable and portable, the Trend PH/JIG/C Twin Pocket Hole Jig is ideal for new projects, strengthening and repair work in materials from 12.7mm to 38mm thick.

FEATURES

• Twin Pockets can be used for drilling two holes for increased strength, or single holes for narrower components
• Full length hardened drill guides for precision pockets and long life span
• Wide material dimensions - range covers stock from 12.7mm to 38mm
• Unlimited material width - can be easily relocated across any material width for infinite pocket hole positioning
• Multi-functional - ideal for making repairs to existing work, constructing smaller projects and heavy duty builds
• Adaptable for multiple jointing styles and applications
• Compact and portable - fits easily into a pocket or tool pouch, always readily to hand
• Fast setup and easy adjustments for different component sizes
• Quick set drill and timber setting - sliding set up gauge sets the correct drilling depth and jig position for different material thicknesses
• Trend snappy chuck compatible
• Supplied complete with HSS stepped drill bit, 150mm square driver bit and selection of screws
• Magnetic clamp plate aids location of the jig when clamping
• Multi material compatibility - ideal for jointing in hard and softwoods and sheet materials

SPECIFICATION

• Material Thickness Min.: 12.7 mm
• Material Thickness Max.: 38 mm
• Hole Centres: 21.5 mm
• Drilling Angle: 15°
