This professional-grade bundle provides everything you need for precise kitchen worktop joints. It includes the Trend KWJ700/PRO 700mm Worktop Jig for accurate cutting of worktop joints and bolt recesses, along with 2x BR01X1/2TC Router Cutters for smooth, clean cuts every time. Ideal for kitchen fitters and tradespeople demanding accuracy, durability, and a flawless finish.
KWJ700/PRO FEATURES
Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime
Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations
Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts
Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90º installations
400mm Radius for breakfast bar and peninsula trimming
R100mm, R40mm and 45° Corners for edge finishing
90° Straight Cuts for accurate skimming and trimming
35mm Hinge / 3/4" BSP Recess for surface-mount monobloc tap and concealed hinge installation
CNC-Machined Compact Grade HPL provides precision, strength and durability
8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset
8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing
*Patent Pending
KWJ700/PRO SPECIFICATION
Length: 1010 mm
Width: 340 mm
Thickness: 12 mm
Weight: 5.5 kg
Insets: 3/10/35 mm
Backsets: 600/610/616/620/635/700 mm
Bolt Recesses: 3
Bolt Recess Centres: 175 mm
Corner Radius: 40/100 mm
Peninsular Radius: 400 mm
Requires: Guide Bush 30 mm
Router Cutter: 12.7mm dia. x 50 mm length
Plunge Router: 1/2"
F-Clamps: min. 80 mm throat x 2
BR01X1/2TC FEATURES
Tungsten Carbide Tipped 1.5mm micro-granular tips for long cutter life.
Ground Tip Face polished to 400-grit ensures accurate cutting
Ground Bottom Clearance for optimum waste removal
Safety K-Mark indicates the correct cutter shank position for maximum collet grip to prevent accidental cutter ejection
EN Shank Markings are etched on the shank for easily readable cutter and safety information
Plastic Storage Container for maximum protection
BR01X1/2TC SPECIFICATION
D: 12.7 mm
C: 2" / 50.8 mm
Shank Diameter: 1/2"
What's in the box

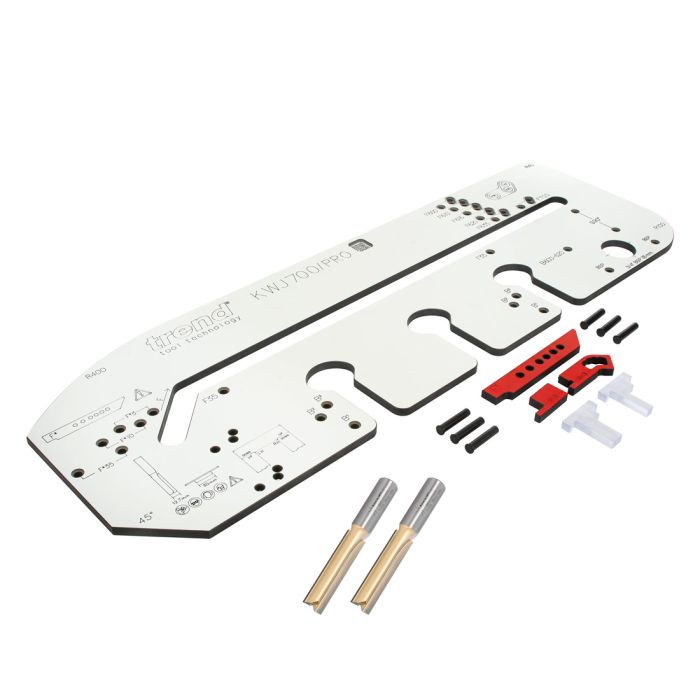

1x KWJ700/PRO 700mm Multi-Material Worktop Jig
2x BR01X1-2TC Two Flute Router Cutter 12.7 x 50.8mm
Notes From PTW Expert
CNC-Machined Compact Grade HPL provides precision, strength and durability
