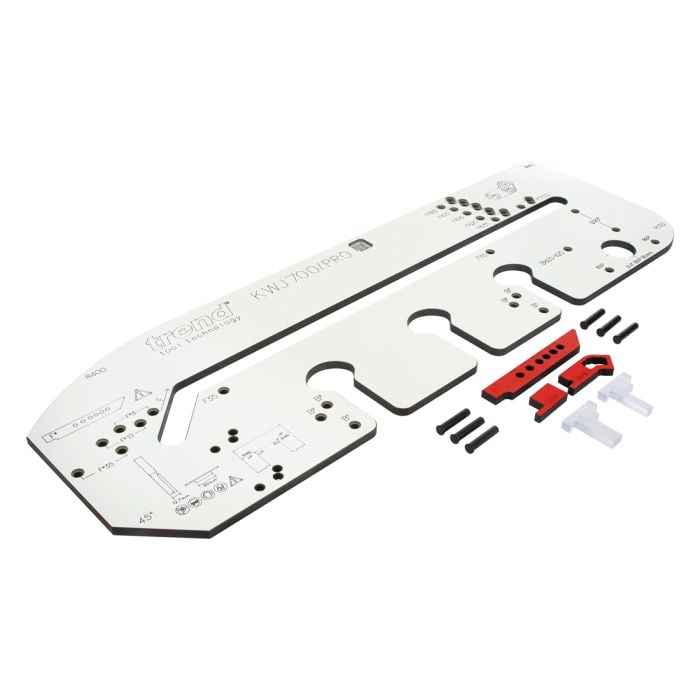

Trend KWJ700/PRO 700mm Multi-Material Worktop Jig

Trend KWJ700/PRO 700mm Multi-Material Worktop Jig

The KWJ700/PRO is universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.

FEATURES

• Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
• Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime
• Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations
• Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts
• Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90º installations
• 400mm Radius for breakfast bar and peninsula trimming
• R100mm, R40mm and 45° Corners for edge finishing
• 90° Straight Cuts for accurate skimming and trimming
• 35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation
• CNC-Machined Compact Grade HPL provides precision, strength and durability
• 8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset
• 8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing
• *Patent Pending

SPECIFICATION

• Length: 1010 mm
• Width: 340 mm
• Thickness: 12 mm
• Weight: 5.5 kg
• Insets: 3/10/35 mm
• Backsets: 600/610/616/620/635/700 mm
• Bolt Recesses: 3
• Bolt Recess Centres: 175 mm
• Corner Radius: 40/100 mm
• Peninsular Radius: 400 mm
• Requires: Guide Bush 30 mm
• Router Cutter: 12.7mm dia. x 50 mm length
• Plunge Router: 1/2"
• F-Clamps: min. 80 mm throat x 2
