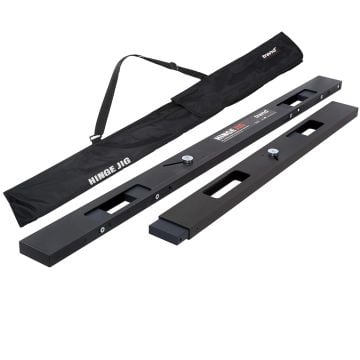

Trend H/JIG/A Hinge Jig Two Part Template Set Bundle Inc 1x C/CHISEL Corner Chisel HSS & 1x TR12X1/4TC Router Cutter

Trend H/JIG/A Hinge Jig Two Part Template Set Bundle Inc 1x C/CHISEL Corner Chisel HSS & 1x TR12X1/4TC Router Cutter

This essential kit makes hinge fitting fast and precise. It includes the H/JIG/A Hinge Jig for accurate hinge placement, the C/CHISEL Corner Chisel for sharp, clean corners, and the TR12X1/4TC Two Flute Router Cutter for smooth, professional-quality cuts. Ideal for woodworkers and DIYers who want reliable results every time.

 H/JIG/A FEATURES

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly

• Used on-site & in joinery shops to increase productivity with excellent results

• Four apertures for fire door requirements

• No need for marking out in the conventional way

• Quick & simple to set-up as the hinge is used as the pattern

• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges

• Can be used on both inside and outside doors, and on maximum 25mm thick fixed stops

• Use with a light duty plunge router with 1/4 inch collet

• Long reach router cutter required, 12mm diameter with 70mm overall length

• Angled position slots to prevent creep

• Unibase may be needed

 H/JIG/A SPECIFICATION

• Length Min.: 2 5/8" (67 mm)

• Length Max.: 5" (127 mm)

• Width Min.: 3/8" (9.5 mm)

• Width Max.: 1 3/8" (35 mm)

• Width Max. in 35mm Rebate: 20 mm

• Width Max. in 44mm Rebate: 30 mm

• Door Sizes Possible: Height Min.: 6' 5" (1955 mm)

C/CHISEL FEATURES

• Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates

• Spring loaded high speed steel (HSS) anvil for a sharp cut and long life

• Light weight aluminium body design

• Can be used with the Trend Hinge Jig

• Can be resharpened

C/CHISEL SPECIFICATION
