Trend GAUGE/D60 Digital Depth Gauge for Routers, Tables & Saw Benches
£19.95
£16.62
SKU: TREGAUGE-D60 | EAN: 5027654554326
You may also need these
what's in the box
- 1x GAUGE/D60 Digital Depth Gauge
- 1x 3V CR2032 Lithium Battery
- 1x Small Rebate Clip
Notes From PTW Expert
Download the GAUGE/D60 User Guide
A useful addition for any router table for setting cutter height as well as fence backset, this gauge has both fractional imperial and metric displays accurate down to 0.1mm
Overview

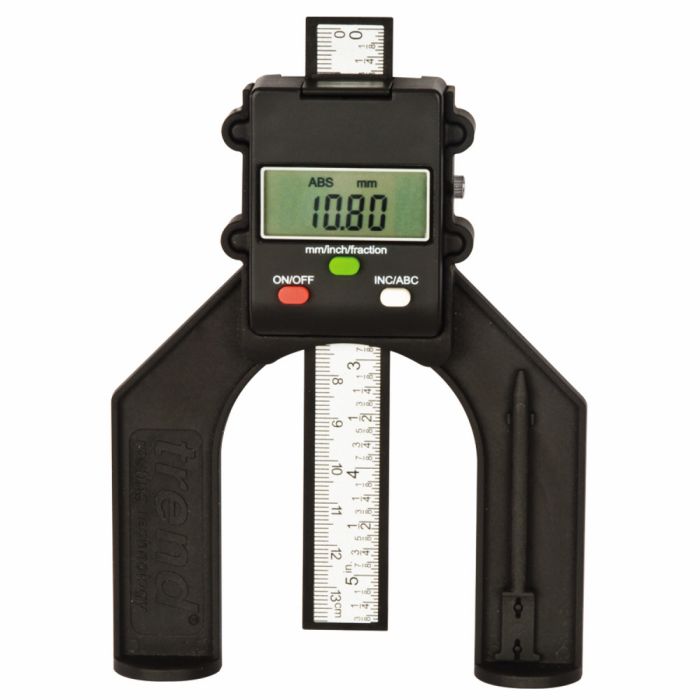

Trend GAUGE/D60 Digital Depth Gauge for Routers, Tables & Saw Benches
Digital depth gauge with 60mm jaw for router tables and saw benches. Horizontal and vertical measuring.
FEATURES
- For hand routers, router tables and saw benches
- LCD readout for mm, imperial and fractions with auto shut off 5 mins
- Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch)
- Self standing with magnetic feet and flat back
- Injection plastic moulding with plastic rule
- 60mm wide aperture
- Read-out has relative co-ordinate and absolute function
- Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence
- Spare battery available separately ref. BAT/CR2032/3V
SPECIFICATION
- Measuring Range: 80 mm (3-1/8")
- Opening Width: 60 mm (2-3/8")
- Resolution: 0.05 mm (0.002")
- Accuracy: +/- 0.1 mm (0.004")
- Repeatability: +/- 0.1 mm (0.004")
- Max. Measuring Speed: 1.5 m/s (60 in/s)
- Weight: 92g
- Voltage: 3 Volt
- ABS Mode (Absolute): Measuring Single Amounts From Zero
- INC Mode (Relative): Measuring From Last Point
