Trend DGP/IP/SF Inner Plate Straight Fan Template for DG/PRO Jig

Trend DGP/IP/SF Inner Plate Straight Fan Template for DG/PRO Jig

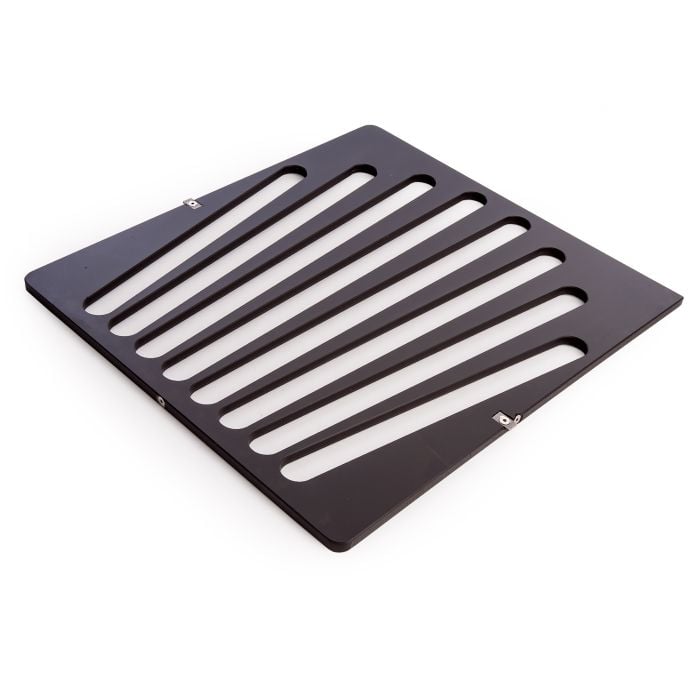

This inner plate frame accessory is for use with the Drainer Groove Pro Jig to create straight fan drainer grooves in solid timber and solid surface worktops.

FEATURES

• Made from 12mm hard wearing CNC machined phenolic
• Requires suitable plunge router with 30mm guide bush and R9.5mm cove cutter
• Must be used with the DG/PRO jig frame to maintain 0.5 degree fall
• X and Y-axis ski and carriage allows forward and back, and side to side movement
• Provides a 0.5 degree fall
• Router carriage has hole to accept 30mm guide bush
• Carriage can be locked to allow parallel groove routing for standard drainer grooves
• Router carriage can also be used for surfacing applications
• Outer frame has index holes at 25mm centres to restrict length of slots and includes two index pins
• Five accessory inner plates available to give various groove effects, straight slot, straight fan, curved fan, lightning fan and hot rod
• Made from 12mm thick hard-wearing machined high pressure laminate
• Patent No. GB1718517.4

JIG REQUIREMENTS

• Guide Bush: 30 mm
• Plunge Router: 1/2 in
• Cutter Cove: R9.5 mm

SPECIFICATION

• Fall: 0.5 Degrees
• Pitch: 40 mm - 62 mm
• Groove Length: 432 mm
• Length: 500 mm
• Width: 500 mm
• Thickness: 12 mm
• Weight: 2.7 kg
• Total Shipping Weight: 4 kg
