Trend DGP/IP/HR Inner Plate Hot Rod Template for DG/PRO Jig

Trend DGP/IP/HR Inner Plate Hot Rod Template for DG/PRO Jig

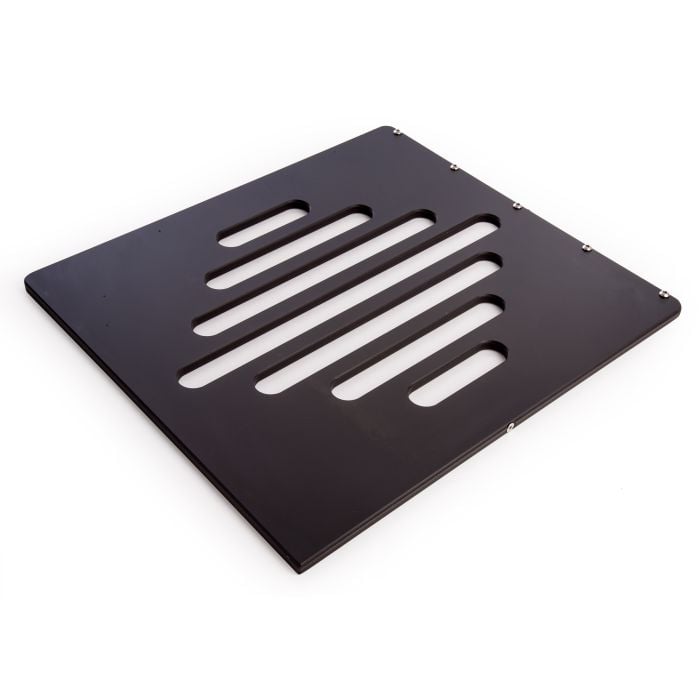

This inner plate frame accessory is for use with the Drainer Groove Pro jig to create grooves for hot rod in solid timber and solid surface worktops.

FEATURES

• Made from 12mm hard wearing CNC machined phenolic
• Accepts hot rods of size 100mm, 200mm, 300mm and 400mm
• Requires suitable plunge router with 30mm guide bush
• Use Ref. C054AX1/2TC, R6.35mm cove (12.7mm diameter) for standard 12.7mm rods, or Ref. C053CX1/2TC, R6mm cove (12mm diameter) for 12mm rods
• Use other cove cutters for other rod diameters
• It is desirable to recess the rods into the worktop by approximately one third to one half of the rod diameter
• Hot rods not included
• Must be used with the DG/PRO jig frame
• X and Y-axis ski and carriage allows forward and back, and side to side movement
• Provides a 0.5 degree fall
• Router carriage has hole to accept 30mm guide bush
• Carriage can be locked to allow parallel groove routing for standard drainer grooves
• Router carriage can also be used for surfacing applications
• Outer frame has index holes at 25mm centres to restrict length of slots and includes two index pins
• Five accessory inner plates available to give various groove effects, straight slot, straight fan, curved fan, lightning fan and hot rod
• Made from 12mm thick hard-wearing machined high pressure laminate
• Patent No. GB1718517.4

JIG REQUIREMENTS

• Guide Bush: 30 mm
• Plunge Router: 1/2 in
• Cutter Cove: R6.35 mm or R6 mm

SPECIFICATION

• Fall: 0.5 Degrees
• Pitch: 50 mm
• Groove length: 100, 200, 300 and 400 mm
• Length: 500 mm
• Width: 500 mm
• Thickness: 12 mm
• Weight: 3.5 kg
• Total Shipping Weight: 4.5 kg
