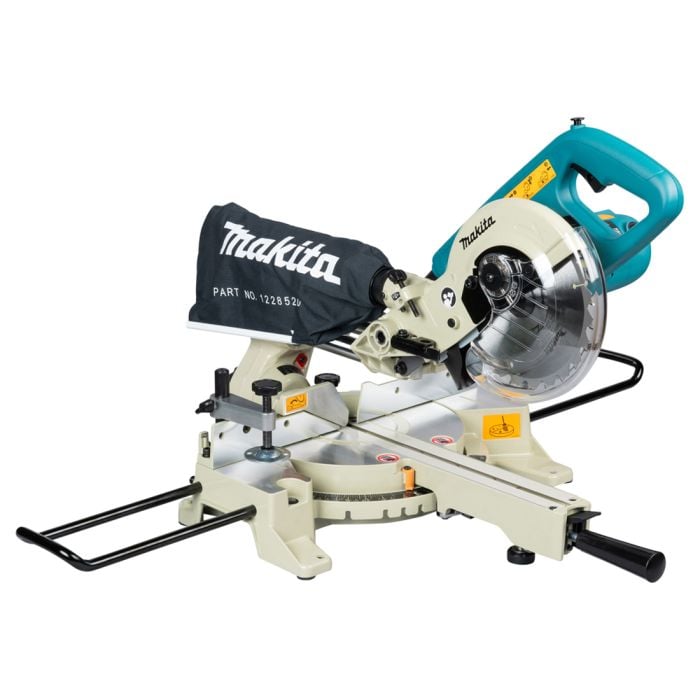

Makita LS0714N 190mm Slide Compound Mitre Saw
what's in the box
- 1x LS0714N Mitre Saw
- 1x TCT Blade
- 1x Dust Bag
- 1x Triangular Rule
- 1x Socket Wrench
- 1x Vice
- 1x Holder
- 1x Switch Button
Notes From PTW Expert
This model replaces the Makita LS0713 - Please note: Model numbers LS0714 & LS0714N are identical products - the latest 'N' version now comes without the usual 'lock-off lever' for ease of use
Makita LS0714 User Manual Click Here
Apologies: Only available for delivery within the UK & Ireland
Overview
Makita LS0714N 190mm Slide Compound Mitre Saw
The Makita LS0714 Mitre saw replaces the LS0713 to be more suitable for those on a budget. The electronic circuit for modes such as the soft start and constant speed have been removed. Lightweight and cost effective. Complete with TCT blade, dust bag and socket wrench.
MAKITA LS0714N FEATURES
- All 4 rails ride on linear ball bearings for extremely smooth and precise operation
- Can cut over 2" x 8" at 45°
- Perfect for sofits, dados, skirting, architraves etc
- Suits the majority of site or workshop applications
- Trench cutting facility
- Double sliding mechanism for lighter, more compact design - weighs only 27.6 lbs
- Conveniently located carrying handle for jobsite portability
- Powerful 10 AMP motor delivers 6,000 RPM
- 9 positive stops at 15°, 22.5°, 30°, 45° right and 0° for the most common mitre cuts
- Smooth easy slide system allows cross cuts up to 11-3/4" wide
- Large aluminium turn base supports large stock for efficient cutting
LS0714 SPECIFICATION
- Voltage: 110v / 240v
- Blade Diameter: 190 mm
- Blade Body Thickness: 1.3 mm - 2.0 mm
- Bore (Arbour) Diameter: 20 mm
- Max. Mitre Angle: Left 47° / Right 57°
- Max. Bevel Angle: Left 45° / Right 5°
- No Load Speed: 6,000 rpm
- Dimensions (L x W x H): 670 mm x 430 mm x 458 mm
- Net Weight: 13.1 kg
MAKITA LS0714 CUTTING CAPABILITIES (H x W)
Mitre Angle | Bevel Angle | ||
45° (left) | 0° | 5° (right) | |
0° | 40 mm x 300 mm | 52 mm x 300 mm | 40 mm x 300 mm |
45 mm x 265 mm (¹) | 60 mm x 265 mm (¹) | – | |
45° (left and right) | 40 mm x 212 mm | 52 mm x 212 mm | – |
45 mm x 185 mm (²) | 60 mm x 185 mm (²) | – | |
57° (right) | – | 52 mm x 163 mm | – |
– | 60 mm x 145 mm (³) | – |
¹ Max. Cutting capacity when using a wood facing 20 mm thickness
² Max. Cutting capacity when using a wood facing 15 mm thickness
³ Max. Cutting capacity when using a wood facing 10 mm thickness
MAKITA CHOP SAW NOISE & VIBRATION
- Sound Pressure Level (LpA): 92 dB(A)
- Sound Power Level (LWA): 101 dB(A)
- Uncertainty (K): 3 dB(A)
- Vibration Emission (ah): 2.5 m/s² or less
- Uncertainty (K): 1.5 m/s²
Available In 110v & 240v
