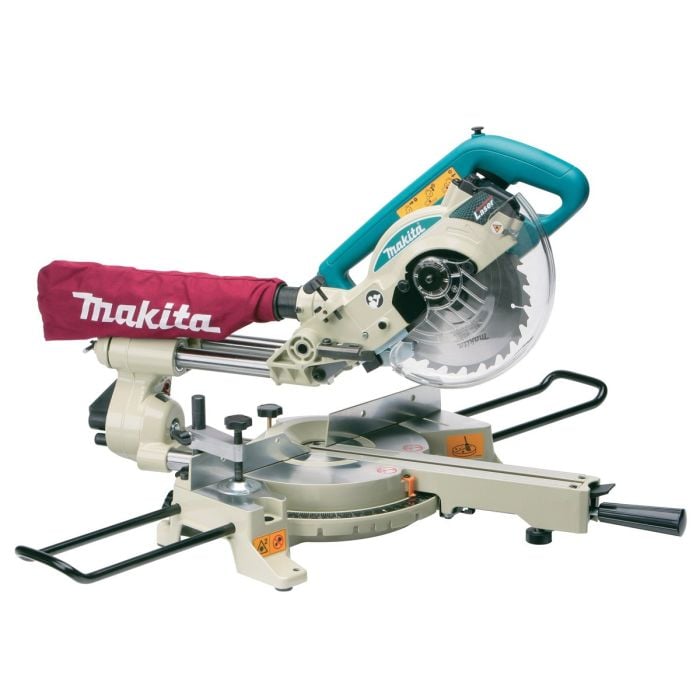

Makita LS0714LN 190mm Slide Compound Mitre Saw with Laser Guide
The Makita LS0714L 190mm Slide Compound Mitre Saw with Laser comes complete with a TCT saw blade, dust bag, triangular rule, socket wrench, vertical vice and safety switch button. With double sliding mechanism for lighter, more compact design.
FEATURES
All 4 rails ride on linear ball bearings for extremely smooth and precise operation
Can cut over 2" x 8" at 45°
Perfect for sofits, dados, skirting, architraves etc
Suits the majority of site or workshop applications
Trench cutting facility
Weighs only 13.5kg
Conveniently located carrying handle for jobsite portability
Powerful 10 AMP motor delivers 6,000 RPM
9 positive stops at 15°, 22.5°, 30°, 45° right and 0° for the most common mitre cuts
Smooth easy slide system allows cross cuts up to 11-3/4" wide
Large aluminum turn base supports large stock for efficient cutting
Laser line allows easy and accurate alignment with ink line even when cutting bevels or decorative timbers
SPECIFICATION
Voltage: 110v / 240v
Laser Type: Red Laser 650 nm, <1 mW (Laser Class 2)
Blade Diameter: 190 mm
Blade Body Thickness: 1.3 mm - 2.0 mm
Bore (Arbor) Diameter: 20 mm
Max. Mitre Angle: Left 47° / Right 57°
Max. Bevel Angle: Left 45° / Right 5°
No Load Speed: 6,000 rpm
Dimensions (L x W x H): 670 mm x 430 mm x 458 mm
Net Weight: 13.5 kg
CUTTING CAPABILITIES (H x W)
Mitre Angle
Bevel Angle
45° (left)
0°
5° (right)
0°
40 mm x 300 mm
52 mm x 300 mm
40 mm x 300 mm
45 mm x 265 mm (¹)
60 mm x 265 mm (¹)
–
45° (left and right)
40 mm x 212 mm
52 mm x 212 mm
–
45 mm x 185 mm (²)
60 mm x 185 mm (²)
–
57° (right)
–
52 mm x 163 mm
–
–
60 mm x 145 mm (³)
–
¹ Max. Cutting capacity when using a wood facing 20 mm thickness ² Max. Cutting capacity when using a wood facing 15 mm thickness ³ Max. Cutting capacity when using a wood facing 10 mm thickness
NOISE & VIBRATION
Sound Pressure Level (LpA): 92 dB(A)
Sound Power Level (LWA): 101 dB(A)
Uncertainty (K): 3 dB(A)
Vibration Emission (ah): 2.5 m/s² or less
Uncertainty (K): 1.5 m/s²
Available In 110v & 240v
What's in the box
1x LS0714LN 190mm Mitre Saw with Laser
1x TCT Saw Blade
1x Dust Bag
1x Triangular Rule
1x Socket Wrench
1x Vertical Vice
1x Safety Switch
Notes From PTW Expert
Please note: Model numbers LS0714L & LS0714LN are identical products - the latest 'N' version now comes without the usual 'lock-off lever' for ease of use
