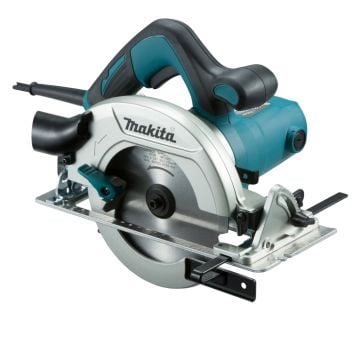

The Makita HS6601 has been designed as the successor model of the 5604R and includes improvements such as the ergonomic soft grip and reduced noise emissions for comfortable use, more power including a 1050 watt motor with a no-load speed of 5,200 RPM and a greatly improved cutting depth at 45 degrees of 37.5 mm.
This model comes packed in a Makita carton with dust extraction nozzle, rip fence (guide rule), TCT saw blade and hex wrench. This kit also comes with 1x 199140-0 1m Guide Rail & 1x 197462-2 Guide Rail Adaptor.
FEATURES
Flat motor housing design increases stability when changing blades
Compact & lightweight at only 296 mm in length with a weight of only 3.7 Kg
Ergonomic soft grip
All ball-bearing construction for extended service life
Rear dust exhaust port exhausts sawdust backward preventing it from scattering around
Rear angular guide for smooth and precise adjustment of bevel angle
Single action lever for quick adjustment of cutting depth
Aluminium die-cast safety cover
Aluminium base plate
Aluminium die-cast blade casing
SPECIFICATION
Blade Diameter: 165 mm
Bore Diameter: 20 mm
Depth of Cut @ 90°: 54.5 mm
Depth of Cut @ 45º: 37.5 mm
Input Wattage: 1050 w
No Load Speed: 5200 rpm
Cable Length: 2.5 mtr
Net Weight: 3.7 kg
NOISE & VIBRATION
Noise Sound Pressure: 87 dB(A)
Noise Sound Power: 98 dB(A)
Noise K Factor: 3 dB(A)
Vibration K Factor: 1.5 m/sec²
Vibration: Cutting Wood: 2.5 m/sec²
What's in the box
1x HS6601 Circular Saw
1x Dust Nozzle
1x Rip Fence (Guide Rule)
1x TCT Saw Blade
1x Hex Wrench
1x 199140-0 1m Guide Rail
1x 197462-2 Guide Rail Adaptor
Notes From PTW Expert
Based on the popular Makita 5604R, this improved successor is fitted with a 165mm diameter tungsten tipped saw blade which gives a cutting depth of 54.5mm @ 90° and 37.5mm @ 45°
