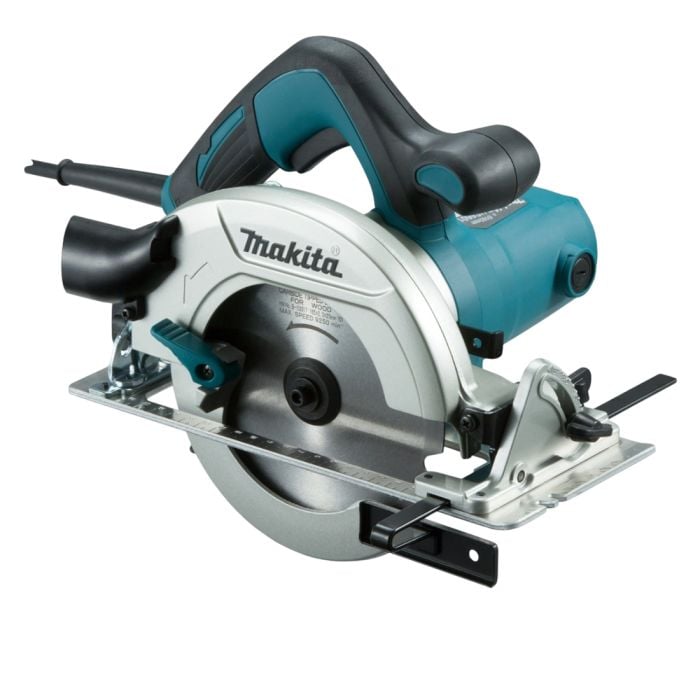

Makita HS6601 165mm Compact Circular Saw

Makita HS6601 165mm Compact Circular Saw

The Makita HS6601 has been designed as the successor model of the 5604R and includes improvements such as the ergonomic soft grip and reduced noise emissions for comfortable use, more power including a 1050 watt motor with a no-load speed of 5,200 RPM and a greatly improved cutting depth at 45 degrees of 37.5 mm.

This model comes packed in a Makita carton with dust extraction nozzle, rip fence (guide rule), TCT saw blade and hex wrench.

FEATURES

• Flat motor housing design increases stability when changing blades
• Compact & lightweight at only 296 mm in length with a weight of only 3.7 Kg
• Ergonomic soft grip
• All ball-bearing construction for extended service life
• Rear dust exhaust port exhausts sawdust backward preventing it from scattering around
• Rear angular guide for smooth and precise adjustment of bevel angle
• Single action lever for quick adjustment of cutting depth
• Aluminium die-cast safety cover
• Aluminium base plate
• Aluminium die-cast blade casing
• Compatible with Makita guide rails when used with adaptor (Part numbers: 197462-2 / 194368-5 / 194925-9 / 194367-7 not included)

SPECIFICATION

• Blade Diameter: 165 mm
• Bore Diameter: 20 mm
• Depth of Cut @ 90°: 54.5 mm
• Depth of Cut @ 45º: 37.5 mm
• Input Wattage: 1050 w
• No Load Speed: 5200 rpm
• Cable Length: 2.5 mtr
• Net Weight: 3.7 kg

NOISE & VIBRATION

• Noise Sound Pressure: 87 dB(A)
• Noise Sound Power: 98 dB(A)
• Noise K Factor: 3 dB(A)
• Vibration K Factor: 1.5 m/sec²
• Vibration: Cutting Wood: 2.5 m/sec²

Available In 110v & 240v
