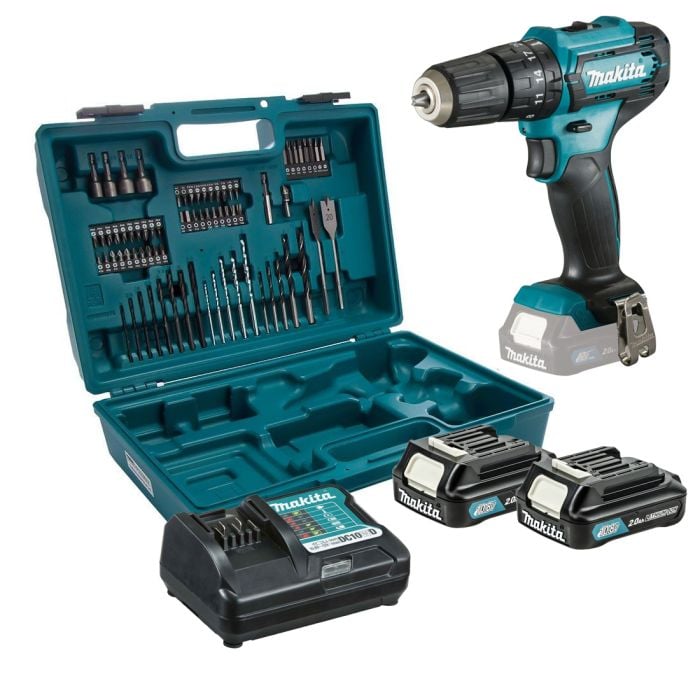

Makita HP333DWAX1 10.8v / 12v MAX CXT Slide Combi Drill inc 2x 2.0Ah Batts in Accessory Case
Makita HP333DWAX1 10.8v / 12v MAX CXT Slide Combi Drill inc 2x 2.0Ah Batts in Accessory Case
what's in the box
- 1x HP333D Combi Drill
- 1x 74 Pc Assorted Accessory Set
- 2x BL1021B 2.0Ah Batteries
- 1x DC10WD Charger
- 1x Driver Bit
- 1x Belt Clip
- 1x Carry Case
Notes From PTW Expert
Part of the expanding 10.8V CXT slide series, combining performance with superior ergonomics in a compact size
Overview
Makita HP333DWAX1 10.8v / 12v MAX CXT Slide Combi Drill inc 2x BL1021B 2.0Ah Batteries, DC10WD Charger in 74 Piece Accessory Set Carry Case
The Makita HP333DWAX1 is a handy and compact combi drill from the Makita CXT 'slide' 10.8v / 12v Max range. This model has been developed based on the HP331D.
This combi drill gets the balance between power and compact flexibility just right, the overall length being 193mm and weighing just over one kilogram.
It has more durability under load over its predecessor due to a change in bearing type. Capable for drilling up to 21mm in wood and 8mm in masonry you can be confident it can handle most 2nd fix jobs quickly and efficiently.
This kit is supplied with 2x 2.0Ah Lithium-Ion battery packs, a DC10WD charger and assorted x74 piece accessory set - which is all packed in a heavy duty moulded carry case.
74 PIECE ACCESSORY SET CONTENTS
- 4x 1/4" Hex Nutsetters (8 / 10 / 12 / 13 mm)
- 8x Drill Bits for Metal (3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 mm)
- 5x Drill Bits for Masonry (4 / 5 / 6 / 7 / 8 mm)
- 5x Drill Bits for Wood (4 / 5 / 6 / 8 / 10 mm)
- 2x Flat Drill Bits for Wood (16 / 20 mm)
- 8x 50mm Driver Bits (PH2 / PH3 / PZ2 / PZ3 / T20 / T30 / SL5.5 / SL6.5)
- 40x 25mm Driver Bits (2x PH0 / 2x PH1 / 3x PH2 / 3x PH3 / 2x PZ0 / 2x PZ1 / 3x PZ2 / 3x PZ3 / H5 / H6 / T10 / T15 / 2x T20 / 2x T25 / T30 / T40 / 2x SL4 / 2x SL5 / 2x SL5.5 / 2x SL6.5 / H3 / H4
- 1x Magnetic Bit Holder
- 1x Countersink
FEATURES
- Slide type Li-ion battery
- Electric brake
- 2 mechanical gears
- Variable speed control trigger
- Keyless Chuck
- Forward and reverse trigger
- LED job light
- Ergonomic soft grip
- Compact overall length 193mm
- Improved durability under load due to change in bearing type
- Equipped with battery protection circuit: designed to protect the battery from damages due to over-discharge, high temperature or overload current
CXT 'SLIDE' BATTERIES
- Higher battery capacity
- Individual cell monitoring
- Battery protection circuit
- Low temperature performance up to -20ºC
- Battery fuel gauge (4-stage LED's)
- Multi-contact slide type terminal ensures stable contact even under extreme vibration
SPECIFICATION
- Voltage: 10.8v / 12v MAX
- Soft Application Max Torque (Nm): 14
- Hard Application Max Torque (Nm): 30
- Torque Settings: 20 + Drill
- Brake Type: Electric
- No. of Gears: 2
- LED Job Light: Yes / Pre-glow & After-glow
- Battery Capacity Indicator: No
- Battery Compatibility: 10.8v / 12v MAX Lithium-Ion (CXT)
- Rotation: Forward / Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed (RPM) High: 0-1700
- No Load Speed (RPM) Med: N/A
- No Load Speed (RPM) Low: 0-450
- Chuck Type: 3-Jaw / Single Sleeve Keyless
- Chuck Capacity (mm): 10
- Screw Capacity: Machine Screw (mm): 6
- Screw Capacity: Wood Screw (mm): 5.1 x 63
- Drill Capacity: Concrete (mm): 8
- Drill Capacity: Metal (mm): 10
- Drill Capacity: Wood (mm): 21
- Impact Rate (BPM) High: 0-25500
- Impact Rate (BPM) Med: N/A
- Impact Rate (BPM) Low: 0-6750
- Overall Length (mm): 193
- Net Weight (Approx. Kg) with 1.5/2Ah Batt: 1.1
- Net Weight (Approx. Kg) with 3/4/5Ah Batt: 1.3
- Brushless Motor: No
NOISE & VIBRATION
- Noise Sound Pressure: 82 dB(A)
- Noise Sound Power: 93 dB(A)
- Noise K Factor: 3 dB(A)
- Vibration K Factor: 1.5 m/sec²
- Vibration Impact Drilling into Concrete: 13.0 m/sec²
- Vibration: Drilling into Metal: 2.5 m/sec²
