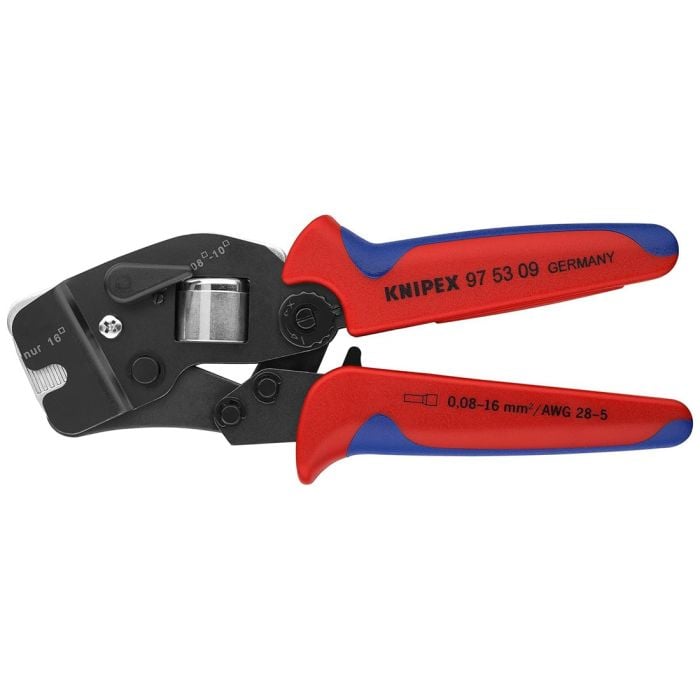

KNIPEX 97 53 09 Self-Adjusting Crimping Pliers With Multi-Component Grips Burnished 190 mm

KNIPEX 97 53 09 Self-Adjusting Crimping Pliers With Multi-Component Grips Burnished 190 mm

The transmission ratio of these crimping pliers has been well-designed and is therefore hand-friendly; it provides a comfortable grip width. A toggle lever effectively supports manual force. This enables conductors with large cross-sections to be assembled well even in the case of extensive installations – also with twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 10. The conductors are reliably connected to the end sleeves using a square profile – in all designated sizes.

FEATURES

• For wire ferrules up to 16 mm²
• Adjusts automatically to the wire ferrule size for precise and quick crimping
• Crimping of wire ferrules according to DIN 46228 parts 1+4
• UL approval in conjunction with KNIPEX wire ferrules 97 99 330 - 399
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Precise, factory-set (calibrated) crimping pressure
• High crimping force due to efficient lever action
• Narrow handle width
• Ergonomic and comfortable handle, smooth operation and lightweight
• Special quality chrome vanadium electric steel, oil-hardened
• With square compression

SPECIFICATION

• Application: Wire ferrules
• Capacity in square millimetres: 0.08 — 10 / 16 mm²
