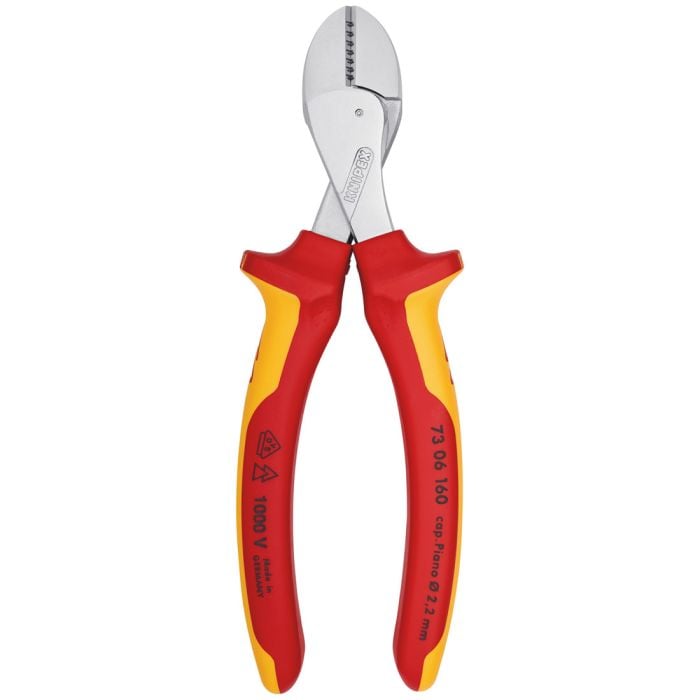

KNIPEX 73 06 160 X-Cut VDE Compact Diagonal Cutter High Lever Transmission 160mm

KNIPEX 73 06 160 X-Cut VDE Compact Diagonal Cutter High Lever Transmission 160mm

Thanks to the geometry of the cutting edges and the high-quality chrome vanadium tool steel, accurate cuts of fine copper wire as well as thick, multicore cable with a diameter of up to 12 mm are possible using the Knipex 73 06 160 X-Cut. The cutting edges on the X-Cut also bite easily through nails and wire of all kinds including spring steel wire (piano wire).

The small tool that is big on energy saving. The extremely high transmission of manual force leads to around 40% less effort required compared to conventional diagonal cutters of the same length. Weight only 175 g, length only 160 mm and a large opening width: the ideal statistics for this compact tool which, thanks to the insulation that complies with standards, can also be used with live parts as long as the relevant safety rules have been complied with.

The design of these compact diagonal cutters with box joint design offers the greatest possible stability because the handles of the pliers stabilise each other in the joint: the joint axle of the Knipex 73 06 160 X-Cut is mounted on two sides; the edges of the inner pliers handle are guided on either side. The quality chrome plating permits simple cleaning and is also an advantage if the tool is, for example, kept permanently in a service vehicle where condensation may arise due to changing temperatures. The chrome plating provides effective corrosion resistance.

FEATURES

• Cuts finest strands as well as multi-core cables and piano wires
• Powerful, light and universal
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Box-joint design: highest stability with low weight
• Doubly supported joint axis for heavy duty
• Large opening width for thicker cables
• Cuts precisely, even through fine copper wires
• Compact, low-weight construction
• Universally usable, in the assembly, maintenance and production
• 40% less force required compared with standard diagonal cutters of the same length
• Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

SPECIFICATION

• Article Number: 73 06 160
• EAN: 4003773075141
• Pliers: Chrome-plated
• Head: Chrome-plated
• Handles: Insulated with multi-component grips, VDE-tested
• Weight: 175 g
• Dimensions: 160 x 60 x 28 mm
• Standard: DIN ISO 5749 DIN EN 60900 IEC 60900
• REACH Compliant: Does not contain SVHC
• RoHS Compliant: Not applicable
• Cutting Capacities: Soft Wire (diameter): Ø 4.8 mm / Medium Hard Wire (diameter): Ø 3.8 mm / Hard Wire (diameter): Ø 2.7 mm / Piano wire (diameter): Ø 2.2 mm / Copper Cable, Multiple-Stranded: Ø 12.0 mm
• VDE Tested: Yes
