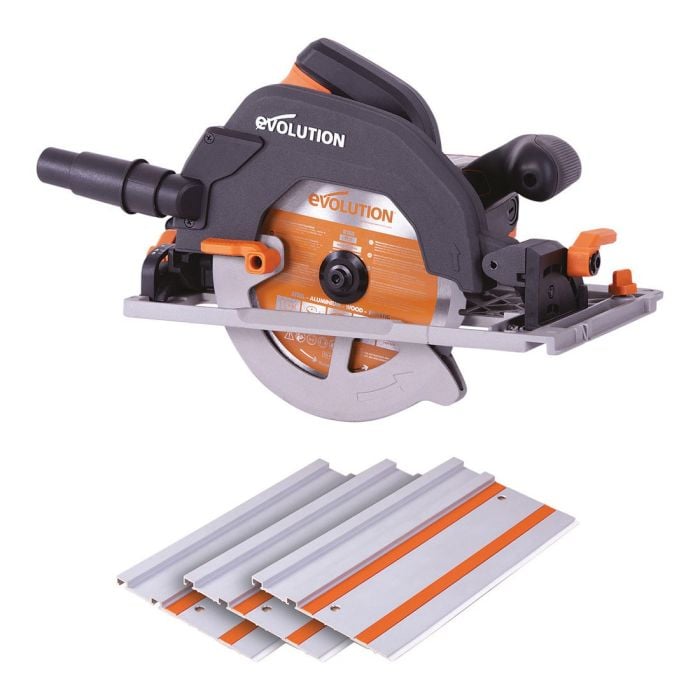

Evolution R185CCSX 185mm Circular Saw With TCT Blade & 1020mm Track

Evolution R185CCSX 185mm Circular Saw 240v With TCT Blade & 1020mm Track

The R185CCSX is a powerful and accurate 185mm circular saw that comes with its own 1020mm track. You'll have power and precision to hand every time you reach for the R185CCSX. It's Evolution's best selling track compatible circular saw and the perfect introduction to the accuracy and reliability that will help you get the job done faster, smoother and safer than ever before.

FEATURES

• Multi-Material cutting technology - one saw, one blade, cuts all
• Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting
• Reliable smooth square cutting every time in a variety of materials
• Powerful 1600 W hi-torque motor with optimized gearbox & blade system
• 0° - 45° bevel tilt with a virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track
• Ergonomic, soft-grip handles to provide maximum control, versatility, and precision
• Dust extraction port & adaptor included for vacuum compatibility
• 1020mm Circular Saw Track included - supplied in 3x pieces with connectors
• Compatible With Evolution's 1.4m & 2.8m Tracks (sold separately)
• Robust & sturdy construction with even weight distribution, weighing only 4.8kg
• Channelled airflow & base indicators ensure optimum visibility of your cutting line
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included
• 3 year limited warranty

SPECIFICATION

• Motor: 1600 W
• No Load Speed (110v/240v): 3700 / 3900 rpm
• Max. Bevel Left: 45°
• Circular Saw Base: Cast Aluminium
• Cable Length: 3 Metres
• Blade Diameter: 185mm
• No. of Teeth: 16
• Bore: 20mm
• Kerf: 1.7mm
• Max. Depth of Cut (0°): 64mm (59mm With Track)
• Max. Depth of Cut (45°): 47mm (42mm With Track)
• Mild Steel Plate (Max. Thickness): 3mm
• Mild Steel Box Section (Max. Wall Thickness): 3mm
• Product Dimensions: 255 x 375 x 265mm
• Product Weight: 5.1 kg

NOISE & VIBRATION

• Sound Pressure Level: 94.3 dB(A)
• Sound Power Level: 105.3 dB(A)
• Uncertainty K: 3 dB(A)
• Vibration - Main Handle (Sawing Wood): 3.347 m/s²
• Vibration - Auxiliary Handle (Sawing Wood): 3.119 m/s²
• Vibration - Main Handle (Sawing Metal): 3.572 m/s²
• Vibration - Auxiliary Handle (Sawing Metal): 3.241 m/s²
• Uncertainty K: 1.5 m/s²

Available In 110v & 240v
