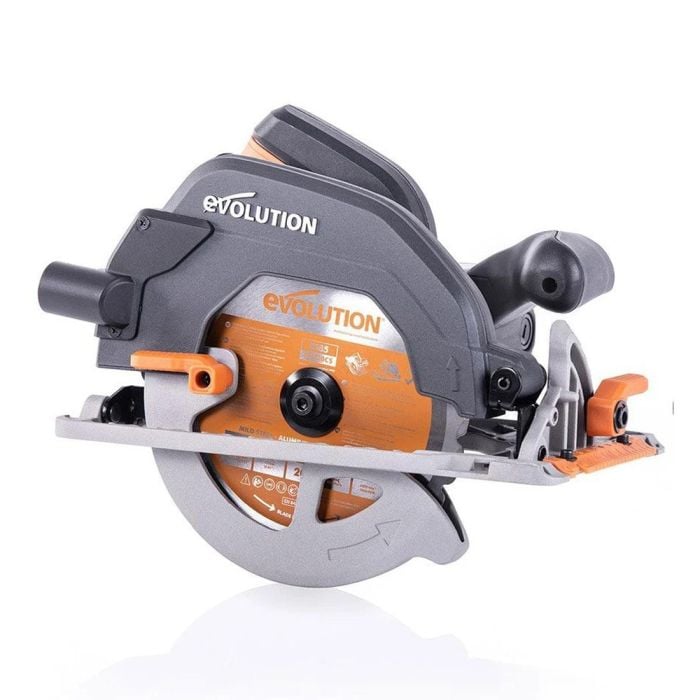

Evolution R185CCS 185mm Multi-Material Circular Saw With TCT Blade
what's in the box
- 1x R185CCS Circular Saw
- 1x 20T Multi-Material TCT Blade
- 1x Hex Key (Blade Change)
- 1x Parallel Edge Guide
- 1x Dust Port Adapter
- 1x Dust Hose Connector
Notes From PTW Expert
Delivers reliable, smooth square cutting every time in a variety of materials
Also available as a track-compatible saw here:
Evolution R185CCSX with track
Evolution R185CCSX+ without track
Overview
Evolution R185CCS 185mm Multi-Material Circular Saw With TCT Blade 110v or 240v
Trade rated, best in class - this 185mm circular saw is ideal for any professional. This impressive multi-material cutting circular saw delivers 1600W, with a powerful, hi-torque motor that's capable of cutting wood - even with embedded nails, laminate, aluminium, plastic and even 6mm thick mild steel, and all with the same Japanese made, tungsten carbide tipped blade.
FEATURES
- Multi-Material cutting technology - one saw, one blade, cuts all
- Accurate cutting with adjustable 64mm depth of cut - perfect for trench cutting
- Reliable, smooth square cutting every time in a variety of materials
- Powerful 1600W hi-torque motor with optimized gearbox & blade system
- 0° - 60° bevel tilt with 22.5° and 45° bevel detents cuts angles accurately & easily
- Channelled airflow & base indicators ensure optimum visibility of your cutting line
- Ergonomic, soft-grip handles to provide maximum control, versatility, and precision
- Dust extraction port & adaptor included for vacuum compatibility
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included
- 3 year limited warranty
SPECIFICATION
- Motor: 1600 W
- No Load Speed (110v/240v): 3700 / 3900 rpm
- Max. Bevel Left: 60°
- Circular Saw Base: Cast Aluminium
- Cable Length: 3 Metres
- Blade Diameter: 185mm
- No. of Teeth: 20
- Bore: 20mm
- Kerf: 1.7mm
- Max. Depth of Cut (0°): 64mm
- Max. Depth of Cut (45°): 40mm
- Max. Depth of Cut (60°): 24mm
- Mild Steel Plate (Max. Thickness): 6mm
- Mild Steel Box Section (Max. Wall Thickness): 6mm
- Product Dimensions: 255 x 375 x 265mm
- Product Weight: 4.9 kg
NOISE & VIBRATION
- Sound Pressure Level (110v): 94.3 dB(A)
- Sound Power Level (110v): 105.3 dB(A)
- Uncertainty K: 3 dB(A)
- Vibration - Main Handle (Sawing Wood): 3.347 m/s²
- Vibration - Auxiliary Handle (Sawing Wood): 3.119 m/s²
- Vibration - Main Handle (Sawing Metal): 3.572 m/s²
- Vibration - Auxiliary Handle (Sawing Metal): 3.241 m/s²
- Uncertainty K: 1.5 m/s²
Available In 110v & 240v
