DeWalt DWS520KTR Plunge Saw & Guide Rail in TSTAK Carry Case
Available In 110v & 240v
SKU: DEWDWS520KR-GBP | EAN: 5035048196861
You may also need these

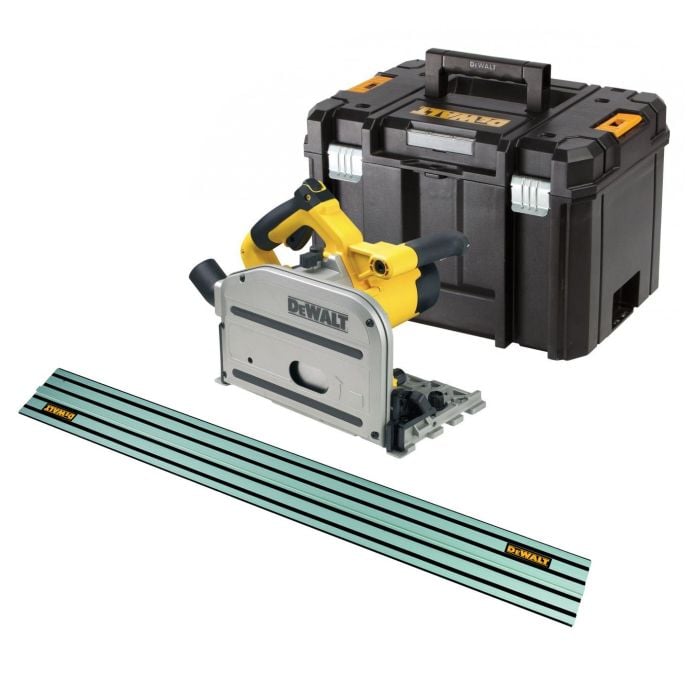

what's in the box
- 1x DW520 Plunge Saw
- 1x Precision Saw Blade (48th)
- 1x TSTAK VI Carry Case
- 1x DWS5022 1.5m Guide Rail
Notes From PTW Expert
Anti kickback function stops the saw from moving backwards along the rail
Overview
DeWalt DWS520KTR Plunge Saw & Guide Rail in Heavy Duty Carry Case
The DeWalt DWS520 Plunge Saw offers a simple and effective solution to a wide range of applications including laminate cutting and door trimming. Extremely high levels of accuracy, finish and durability make the DWS520KTR the popular choice for multiple trades.
FEATURES
- Outstanding levels of accuracy and finish, as well as extreme durability
- Designed in conjunction with guide rails that are easy to set up and use
- Simple and effective solution for a range of applications, particularly with laminate cutting
- Flat outside guard so can be used for door trimming
SPECIFICATION
- Power Input: 1300 Watts
- Power Output: 690 Watts
- No Load Speed: 1750 - 4000 rpm
- Blade Diameter: 165 mm
- Blade Bore: 20 mm
- Bevel Capacity: 47°
- Max. Depth of Cut at 90º: 59 mm
- Max. Depth of Cut at 90º[with guide rails]: 55 mm
- Max. Depth of Cut at 45º: 44 mm
- Max. Depth of Cut at 45º[with guide rails]: 40 mm
- Weight: 5.1 kg
- Length: 303 mm
- Height: 265 mm
NOISE & VIBRATION
- Hand/Arm Vibration: 2.5 m/s²
- Uncertainty K 1 (Vibration): 1.5 m/s²
- Sound Pressure: 92 dB(A)
- Sound Pressure Uncertainty: 3 dB(A)
- Sound Power: 103 dB(A)
- Sound Power Uncertainty: 3 dB(A)
