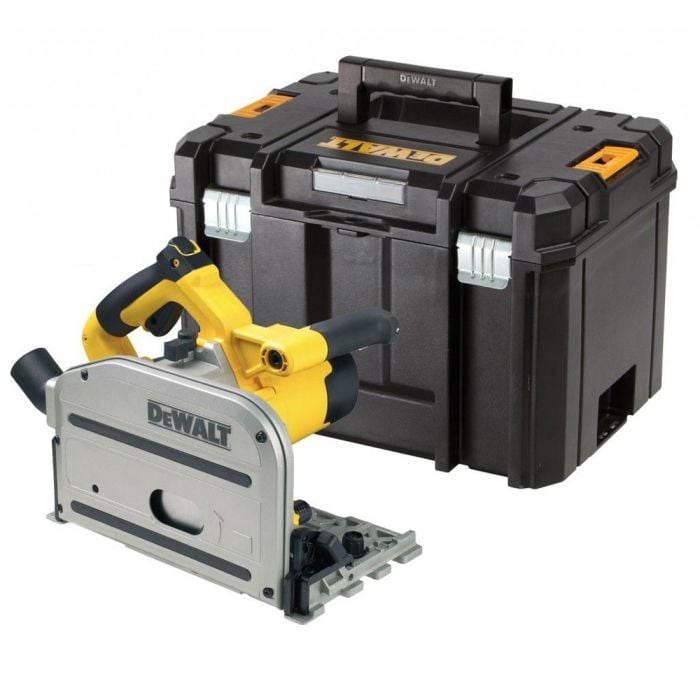

The DEWALT DWS520 165mm Plunge Saw is a professional corded plunge saw designed for accurate, clean and controlled cutting in timber, sheet materials, laminates and other woodworking applications. Its 1300W motor and variable-speed control provide consistent cutting performance across a range of materials. The parallel plunge mechanism maintains a smooth and comfortable hand position throughout the cut, while the rail adjustment system allows the saw to be accurately aligned to compatible DeWalt guide rails (sold separately). The anti-kickback function helps prevent the saw from moving backwards along the rail or climbing out of the workpiece during plunge cuts.
A 48-tooth precision TCT blade provides a fine finish with reduced breakout, while the enclosed blade guard is designed for effective dust extraction when connected to a suitable extractor. Includes TSTAK VI carry case.
FEATURES
Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
A 48 tooth blade gives a fine and accurate finish with very little breakout in laminates
Rail adjustment allows the saw to be adjusted accurately to the rail
The anti kickback function stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts
Variable speed allows the correct speed to be set for different types of materials
Full wave electronics maintains a constant speed under heavy load
The enclosed guard gives a 90% dust extraction capability
55mm depth of cut allows the trimming and sizing of most common door sizes
SPECIFICATION
Power Input: 1300 Watts
Power Output: 690 Watts
No Load Speed: 1750 - 4000 rpm
Blade Diameter: 165 mm
Blade Bore: 20 mm
Bevel Capacity: 47 °
Max. Depth of Cut at 90º: 59 mm
Max. Depth of Cut at 90º [with guide rails]: 55 mm
Max. Depth of Cut at 45º: 44 mm
Max. Depth of Cut at 45 º [with guide rails]: 40mm
Weight: 5.1 kg
Length: 303 mm
Height: 265 mm
NOISE & VIBRATION
Hand/Arm Vibration: 2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Pressure: 92 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 103 dB(A)
Sound Power Uncertainty: 3 dB(A)
Available In 110v & 240v
What's in the box
1x DW520 Plunge Saw
1x TSTAK VI Carry Case
1x Precision Saw Blade (48 Tooth)
Notes From PTW Expert
Extremely high levels of accuracy, finish and durability make the DWS520KT the popular choice for multiple trades
