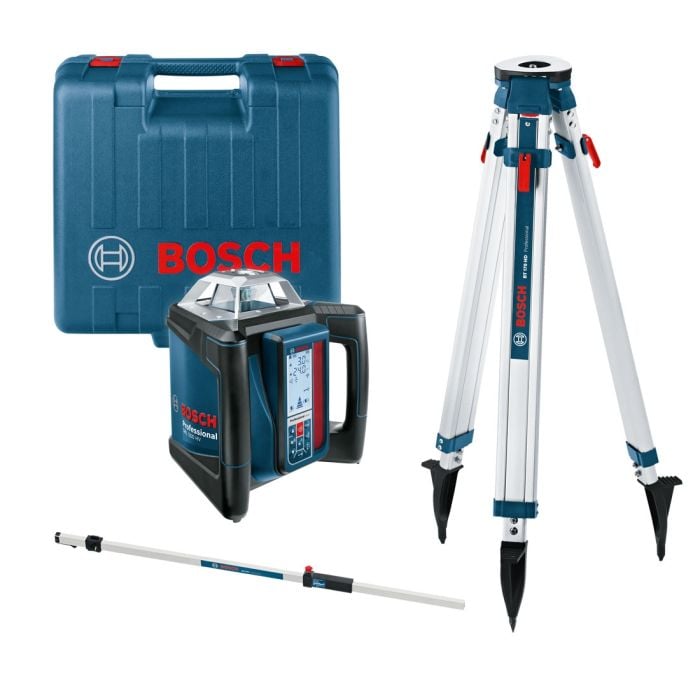

Bosch GRL 500 HV + BT170HD + GR240 Professional Horizontal and Vertical Rotary Laser Level with Tripod and Cut and Fill Rod Kit - 0 615 994 0EF
The first rotation laser with theft protection for all levelling work.
GRL 500 HV + LR50
- Theft protection: an alarm is triggered if the GRL 500 HV is moved without the LR 50 Professional during operation.
- Simultaneous charging: the Li-Ion batteries in both components are charged together in very little time.
- Calibration reminder: automatically indicates calibration requirement.
- Slope function: enter slope values directly and precisely using the LR 50 Professional keypad.
- Line Control: align the vertical line as desired in vertical mode using the arrow buttons.
- Anti-Drift System: prevents levelling errors in the event of shocks or vibrations.
- Sleep mode: when the tool goes into sleep mode, all settings are saved and the theft protection and the Anti-Drift System remain operational.
- Relative height display: distance between where the laser beam hits the reception area and the centre of the receiver.
- Centre Line button: automatically aligns the laser beam with the centre of the receiver and measures the slope value.
- Laser diode - 635 nm, < 1 mW
- Operating temperature - -10 – 50 °C
- Storage temperature - -20 – 70 °C
- Laser class - 2
- Working range with receiver - 500 m (Diameter)
- Working range without receiver - 20 m (Diameter)
- Levelling accuracy - ± 0.05 mm/m horizontal/ ± 0.1 mm/m vertical
- Self-levelling range - ± 5,7° (10%)
- Levelling time - 15 s
- Dust and splash protection - IP 56
- Rotation speed - 600 rpm
- Beam diameter - 5 mm
- Power supply - 4 x 7.4-V-Li-Ion
- Operating time, max. - 25 h
- Tripod thread - 2 x 5/8"
- Weight, approx. - 2.3 kg
- Length - 234 mm
- Width - 217 mm
- Height - 194 mm
- Colour of laser line - red
- Projection - 1 x 360° line
- Quick locking due to Quick-Clamp-System
- High resistance to environmental influences
- 5/8" thread adapter
- Work height - 107 – 165cm
- Weight, approx. - 5.5kg
- Tripod thread - 5/8"x11

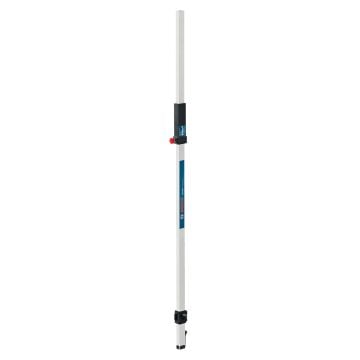

- Robust, high-quality aluminium profile
- Extendible up to 2.4m
- For use even under extreme conditions
- Length - 2.4 m
- Sections - 2
- Units of measure - m / cm
- Material - Aluminium
