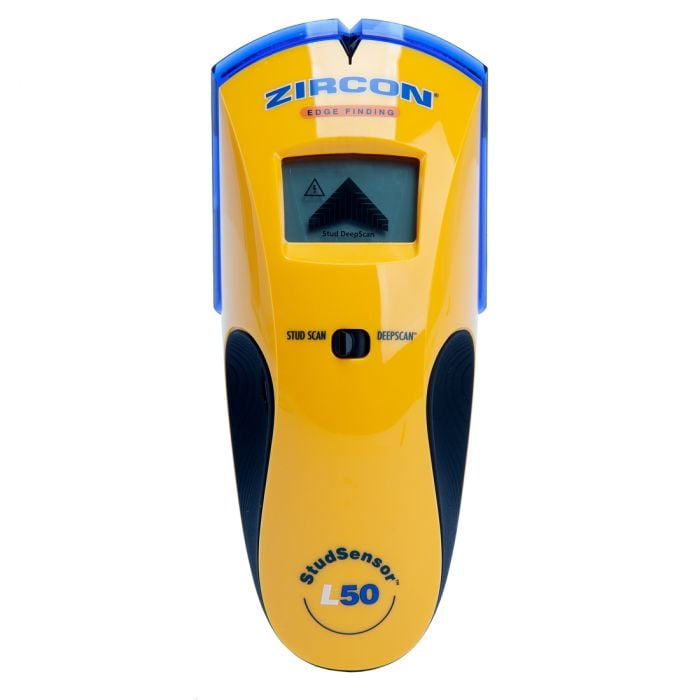

Zircon L50 StudSensor Stud Finder

Zircon L50 StudSensor Stud Finder

The StudSensor™ L50 stud finder locates the edges of wood and metal studs and joists behind walls, floors, and ceilings. Its easy-to-read display screen indicates stud edges, the SpotLite® Pointer shines a beam of light on the wall to clearly identify the target, and the WireWarning® detection indicates the presence of live AC voltage. Its patented pivot pinch grip and contoured shape provide an easy, secure hold in either hand, at any angle.

FEATURES

• StudScan mode locates the edges of wood or metal studs up to 19mm deep
• DeepScan® mode doubles the scanning depth to 38mm deep
• READY icon displays when calibration has completed successfully
• Easy-to-read LCD display indicates when a stud edge is approached
• Zircon's patented "over-the-stud" indication alerts you to start the scan in a new location if scanning begins over a stud
• WireWarning® Detection indicates the presence of live, unshielded AC electrical wiring up to 51mm deep
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Translucent base and illuminated "V" marker groove for more accurate marking of stud edge location
• Rubber handle for non-slip grip
• Splash and water resistant

SPECIFICATION

• Dimensions: 168 x 71 x 43mm
• Battery Type: 1x 9v Alkaline
• Position Accuracy: 3mm @ 19m / 5mm @ 38m
• Depth:
• StudScan Mode: Up To 19mm
• DeepScan Mode: Up To 38mm
• Operating Temperature: -7°C to 41°C
• Storage Temperature: -29°C to 66°C
• Weight: 126g Without Battery
