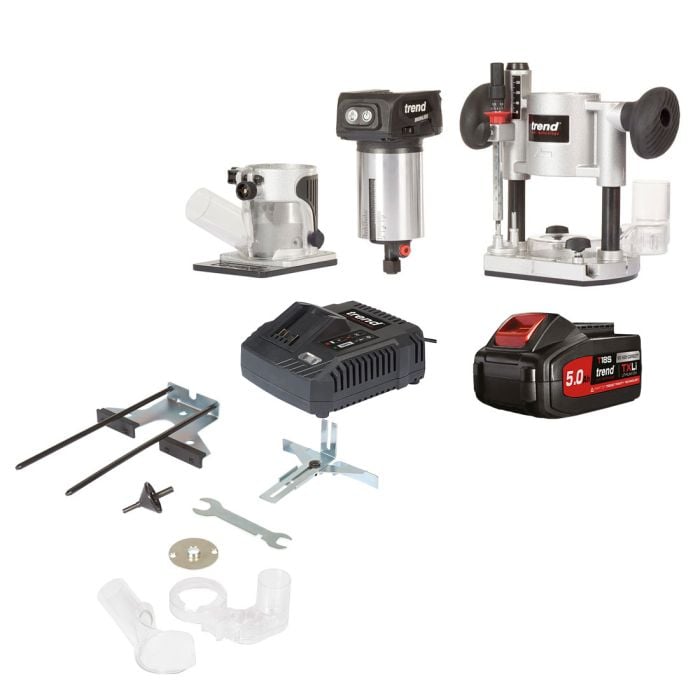

Trend T18S/R14PB Cordless 1/4” 18v Brushless Dual-Base Trim & Plunge Router Inc 1x 5.0Ah Batts

Trend T18S/R14PB Cordless 1/4” 18v Brushless Dual-Base Trim & Plunge Router Inc 1x 5.0Ah Batts

The Trend T18S/R14 1/4" Router has a high-performance, brushless motor that offers longer motor life, more power and more run time. Supplied with a Plunge and Trim base for a wide range of applications. Its variable speed motor provides controlled cutting on materials including hardwood and softwood, sheet materials, laminates and plastics. A guide bush centralising feature provides accuracy and precision when using jigs and templates. Micro-adjustable depth setting for precision jointing and inlaying tasks.

A quick-release plunge lock allows for fast and controlled plunge routing. Its Multi Slit 1/4" ER Collet has a double lock safety feature for concentric gripping and maximum cutter shank support. Whilst a safety on/off switch locks the router to prevent accidental operation. Built-in twin LED lights illuminate the work area for finer control and accuracy.

FEATURES

• Trend high performance brushless motor – longer motor life, more power, more run time

• 60mm plunge depth - market leading plunge depth gives access to a wider range of applications

• Dual bases - plunge and trim base options for a wide range of applications including trend trade hinge jigs

• Guide bush centralising feature - for accuracy and precision when using jigs and templates

• Trend base configuration - direct fit for trend guide bushes to further enhance the range of routing applications

• Variable speed motor - controlled cutting on materials including hard and soft woods, sheet materials, laminates and plastics

• Micro-adjustable depth setting - for precision jointing and inlaying tasks

• Quick release plunge lock – for fast and controlled plunge routing

• Quick release bases – cam locks grip the motor body to ensure a secure lock and fast release between base swaps

• Fine height adjustment plunge base – micro- adjuster for fine tuning cutting depth for maximum precision

• 3 position rotating turret – allows cutter depths to be quickly and accurately set and altered, ideal when making multiple passes

• Twin led light – built in led illuminates the work area for finer control and accuracy when working to set positions

• Rack and pinion fixed base – allows fine, controlled adjustments with fast cam lock, ideal for fixed settings on edge work such as roundovers, chamfers and quirked moulds

• Extended trim base – elongated base plate for controlled offset pressure to prevent tipping when working edge moulds and traversing corners

• Aluminium base construction – high quality aluminium construction for durable, stable and accurate performance

• Ergonomic plunge handles – forward facing oval grips for comfortable wrist positioning and easy access to the plunge lever

• Spindle lock – allows fast cutter swaps with a single spanner

• Safety on/off switch – safety switch locks the router to prevent accidental operation

• Dust kit – extraction adapter kit to help capture harmful dust particles

• Side fences – for grooving and moulding in from an edge. 16mm guide bush – allows the router to be used with hinge jigs straight out of the box

• Trend tool connection – takes all trend 18v li ion batteries

SPECIFICATION

• Duty Rating: Lightweight

• Motor Type: Brushless

• DC Voltage: 18V

• Supplied Collet Size: 1/4"

• Plunge Stroke (Max): 60mm

• Cutter Height Adjustment: Trim Base - 37mm

• No-Load Speed: 10,000 - 30,000rpm

• Supplied Guide Bush: 16mm (GB160)

• Base Aperture Diameter: 40mm

• Fence Rod Length: 300mm

• Fence Rod Centres: 84mm

• Fence Rod Diameter: 8mm

• Cutter Diameter (Max): 35mm

• Dust Spout Internal Diameter: 35mm

• Weight of Base - Trim: 0.32kg

• Weight of Base - Plunge: 1.35kg

• Weight of Motor Body - 0.9kg

• Charger Plug Type: UK 3 pin

• Router Table Compatible: No
