Trend MFT/JIG Multi Functional Table Routing Jig

Trend MFT/JIG Multi Functional Table Routing Jig

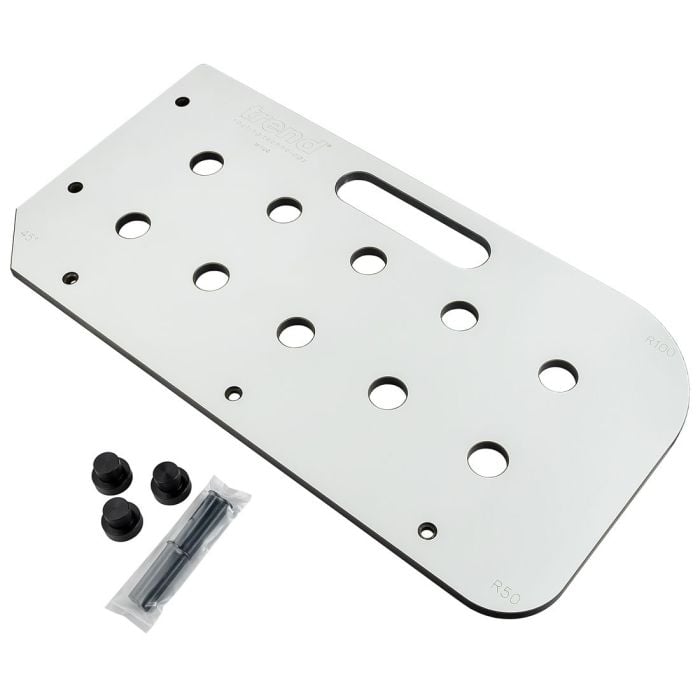

The Trend Multi Functional Table Routing Jig creates accurate precise MFT style worktops quickly with a plunge router. Made from compact grade high pressure laminate 12mm thick, it is ideal for router drilling 20mm holes at 96mm centres.

FEATURES

• Two corner radii and 45 degree end cut
• Edge guides for initial rows, index pins for indexing for subsequent holes
• Recess aperture facility for desk tidy
• Jig requires:
• A portable plunge router with 12.7mm (1/2") shank capacity and minimum 1300 watts
• A template guide bush with 30mm outside diameter ref. GB30/A
• A long series TCT plunge cut router cutter with 20mm diameter and 37mm cut length

SPECIFICATION

• Hole Centres: 96 mm
• Radii: 50 mm & 100 mm
• End Cut: 45 degrees
• Size: 298 x 586 mm
• Guide Bush: 30 mm
• Plunge Router: 1/2"
• Cutter Cut with Plunge Cut: 20 x 37 mm
• Clamps: 2
• Weight: 3 kg
