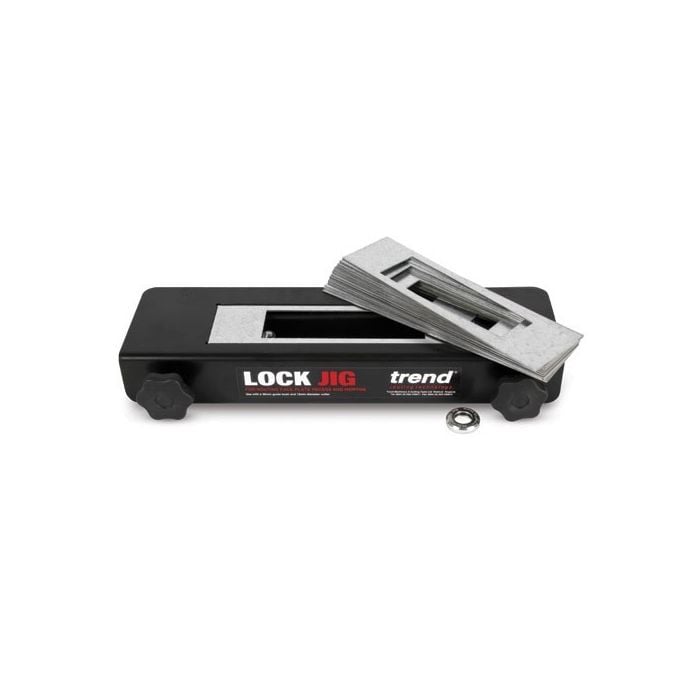

Trend LOCK/JIG/A Lock Jig - Large

Trend LOCK/JIG/A Lock Jig - Large

Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.

FEATURES

• Suitable for DDA (Disabilty Discrimination Act) lock size
• 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise
• Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG)
• Suitable for doors 34mm to 58mm thick
• An auger bit and drill is required to complete deep mortises
• The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise
• Suits DIN style locks

SPECIFICATION

• Door thickness min.: 34 mm
• Door thickness max.: 58 mm
• Includes templates for locks having the following face-plate dimensions:
• Metric (D x OL): 20 x 235mm (RE)
• Template: 1
• Metric (D x OL): 24 x 235mm (RE)
• Template: 2
• Rounded ends (RE)
• Mortise Lock Dimensions:
• Metric (D x OL) Template: 17 x 170mm*
• Template: A
• *Mortise is actually 180mm to give 5mm clearance each end
