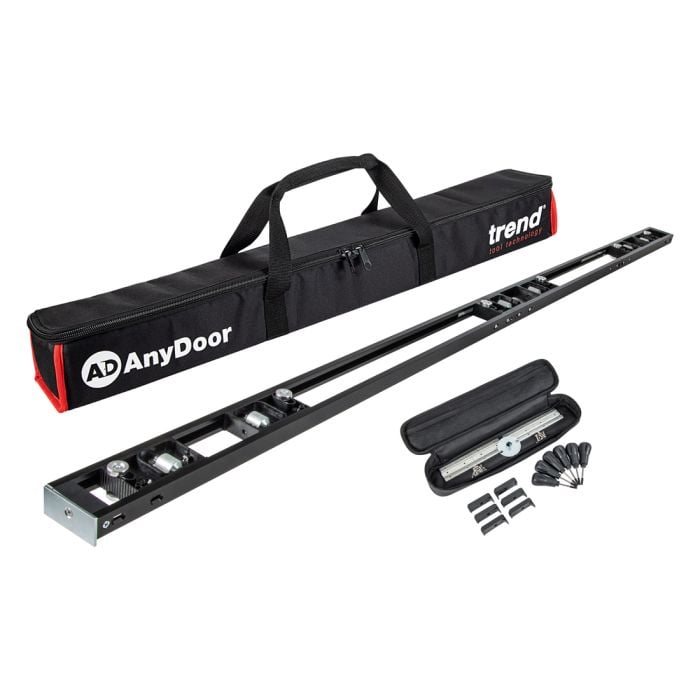

Trend H/JIG/D6 AnyDoor 6' 8" Modular Hinge Jig Kit

Trend H/JIG/D6 AnyDoor 6' 8" Modular Hinge Jig Kit

The AnyDoor Hinge Jig features a patented Modular Rail Construction that offers exceptional flexibility and adjustability for hinge installations. This unique design allows the jig to be adjusted from 600mm to 2040mm right out of the box, accommodating standard door sizes, including 6'6", 6'8".

One common issue with other hinge jigs is the limited space for hinge installation due to the placement of hinge aperture blocks and connection blocks on the same rail. However, the AnyDoor Hinge Jig's Modular Rail Construction eliminates this problem. By separating the hinge aperture blocks from the connection block on different rails, the jig provides ample space for installing hinges without any interference.

This innovation ensures that hinges can be installed smoothly and accurately across the entire range of door sizes without any limitations or restrictions caused by shared rails. It allows for precise positioning of hinge pockets along the door's height, resulting in consistent and professional hinge installations.

FEATURES

• Modular Rail Construction allows the jig to be shortened or extended to suit smaller or oversize doors

• Ideal for Dutch/stable doors, loft conversions, access panels, loft hatches and understairs storage. Expansion rails available for doors larger than 2040mm (6'8")

• Patented* Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations

• Radius Hinge Compatibility allows fast and accurate installation of square or 10mm radius hinge profiles

• Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) woodscrews for maximum stability

• Lightweight Anodized Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface

• Tough Carry Bag stores pre-built jig sections to minimise assembly time

• Adjustable Edge Guides accommodate 19mm, 26mm and 30mm hinge leaf widths (preset) or any leaf width between 12.7mm and 35mm (custom)

• Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning

• 3.0mm (1/8”) Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition

• 25mm (1”) Rail Depth allows jig to be used against fixed door stops

• Includes: 16.0mm Guide Bush
