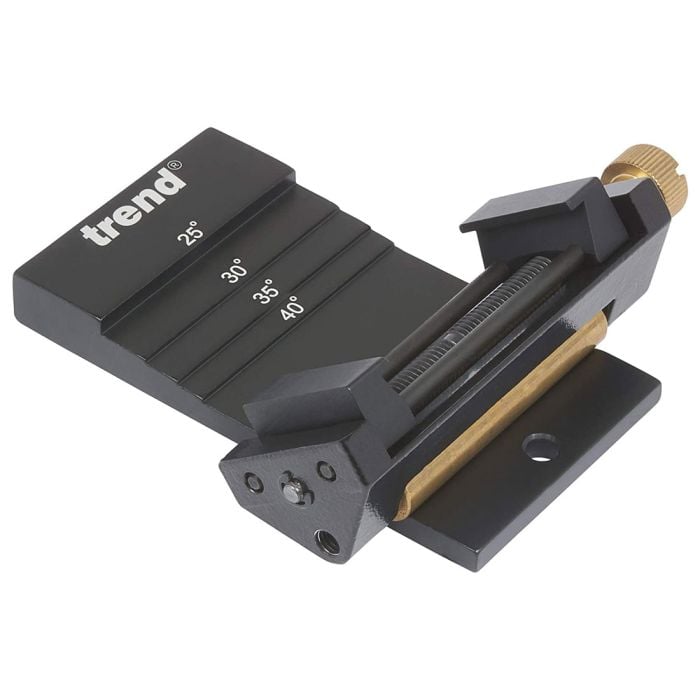

Trend DWS/HG/SET Diamond Honing Guide Set

Trend DWS/HG/SET Diamond Honing Guide Set

Ensure the correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone with the Trend DWS/HG/SET Diamond Honing Guide Set.

FEATURES

• Precision roller with alloy body which self-centre clamps bevel edge chisels from 3/8 inch (10mm) to 1-1/4 (32mm) and plane irons up to 2-3/8 inch (60.3mm) wide. Maximum tool thickness 7mm
• The setting device is preset for 25 degree, 30 degree, 35 degree and 40 degree angles
• Positive location for roller and blade
• Adjustable stop for setting blade angle
• Use with 63mm (2 1/2 inch) wide x 178mm (7 inch) long bench stones or workshop stones
• Not for use with Firmer chisels or short blade (Butt) chisels

SPECIFICATION

• Chisel Blade Width Min: 10 mm
• Chisel Blade Width Max: 32 mm
• Chisel Blade Thickness Max: 7 mm
• Chisel Blade Length Min: 75 mm
• Plane Blade Width Max: 60.3 mm
• Angle: 25 deg, 30 deg, 35 deg & 40 deg
