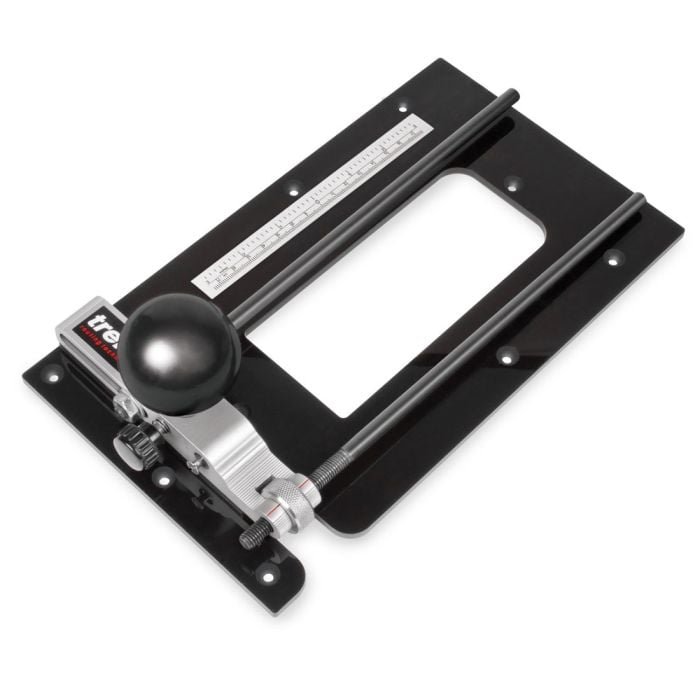

Trend CRB Combination Router Base

Trend CRB Combination router base

Combination router base

The CRB has seven functions - an offset baseplate, router compass from 19mm to 224mm radius, adjustable trenching with a clamp guide with 40mm micro adjustment, adjustable anti-tilt support, adjustable mortising of timber from 50mm to 200mm width, adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required).

FEATURES

• The Combination Router Base is a retro fit, quick change, multi-functional router base designed to:
• Increase the overall versatility of the router
• Improve the quality of finish of every routing pass
• Reduce the possibility of error
• Increase stability during routing
• Increase the level of precision achieved
• Save set up time between tasks
• Save space on storing hand made jigs
• The CRB will fit most routers with two 8mm, 10mm and 12mm fence rod holes at centres of 78mm to 130mm
• An accessory quick fit edge trimming base is available for trimming lipping up to 16mm wide and 6mm projection, ref. CRB/TB
• Larger circles can be accommodated by using ccessory extension rods ref. N/COMPASS/AEX to increase radius by 560mm
• Design Reg. No. 3003693

SPECIFICATION

• Rod Size: 8 mm
• Rod Centres: 78 mm to 130 mm
• Mortising Width Min: 50 mm
• Mortising Width Max: 200 mm
• Anti-tilt Height Max: 80 mm
• Anti-tilt height Min: 8 mm
• Lateral Adjustment: 110 mm
• Micro Adjustment: 40 mm
• One Revolution:1.25 mm
• Circle Dimensions using 6.35mm Cutter and Measured from Outside Edge of Hole:
• Circle Radius Min:19 mm
• Circle Diameter Min:38 mm
• Circle Radius Max:224 mm
• Circle Diameter Max:448 mm
• lng.:285 mm
• Width:175 mm
• Thickness:5 mm
• Cutter Diameter Max. Possible:40 mm
