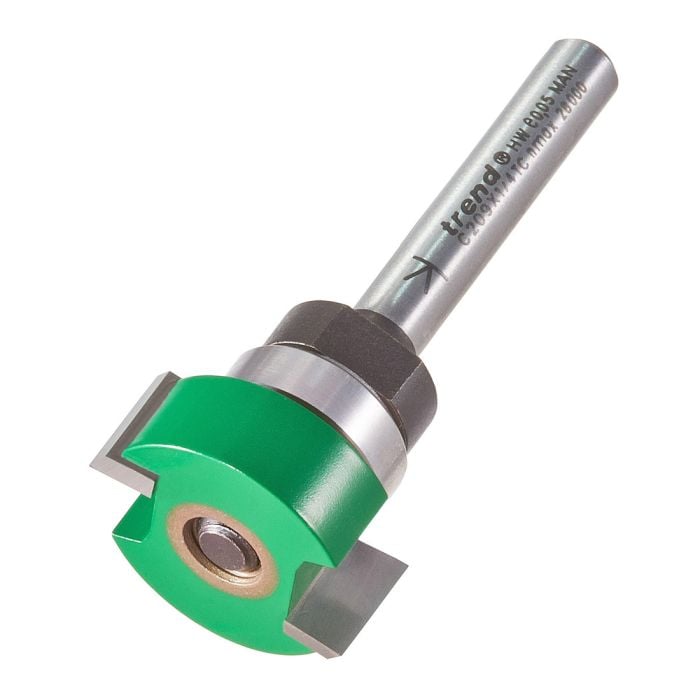

Trend CraftPro C209X1/4TC Intumescent Router Cutter 10mm x 24mm

Trend C209X1/4TC Intumescent Cutter Set 10mm x 24mm

Trend Craft Pro 1/4" Shank Intumescent strip cutter - 10mm width Two Flute Carbide tips.

For either frame or door applications, with standard Intumescent Strip. Neatly cuts grooves on doors or frames to accept Intumescent Strip which enables the formation of effective barriers to both fire and smoke. By using alternative ball bearings diameters other seal thicknesses can be introduced. Alternative bearings can be purchased to suit other thicknesses.
For 4.0mm thick and 10.0mm width intumescent strip.

SPECIFICATION

• D: 24 mm
• C: 10 mm
• B: 16 mm
• E: 4 mm
• Shank Diameter: 1/4"
