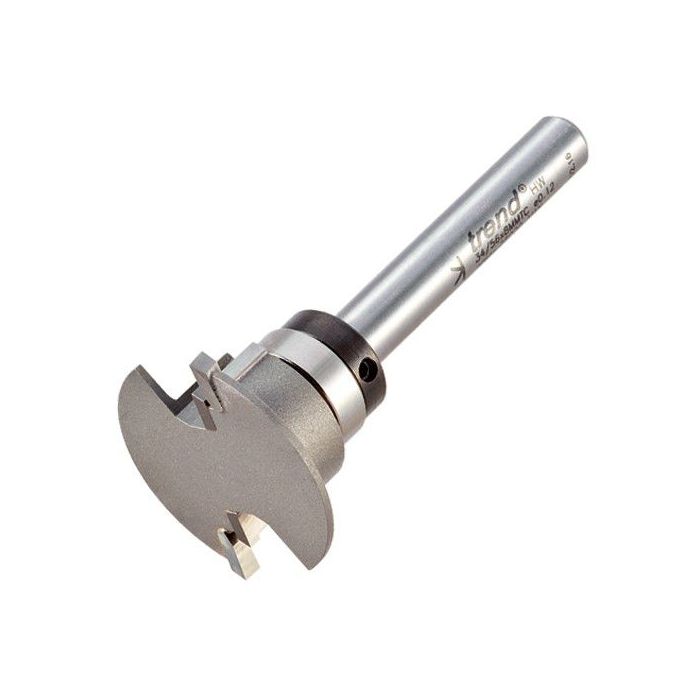

Trend 34/56X8MMTC 33.8mm Diameter Recess Cutter - Aquamac 21/Aquatex A10

Trend 34/56X8MMTC 33.8mm Diameter Recess Cutter - Aquamac 21/Aquatex A10

The cutter is designed for use with the seal in a wiping mode and comes complete with a guide bearing to reduce setting-up time and simplify machining operations.

FEATURES

• Ref. 334 is MEC mechanical feed only
• Recessing cutter will accommodate the Schlegel Aquamac 21 or Exitex Aquatex A10 seal
• Ref. 34/56 can be used in a smaller medium duty router

SPECIFICATION

• Shank Diameter: 8 mm
• Diameter: 33.8 mm
• Diameter2: 21.7 mm
• Cut Length: 2.7 mm
• Cut Length2: 9.3 mm
• Overall Length: 70 mm
• Bearing Diameter: 16 mm
