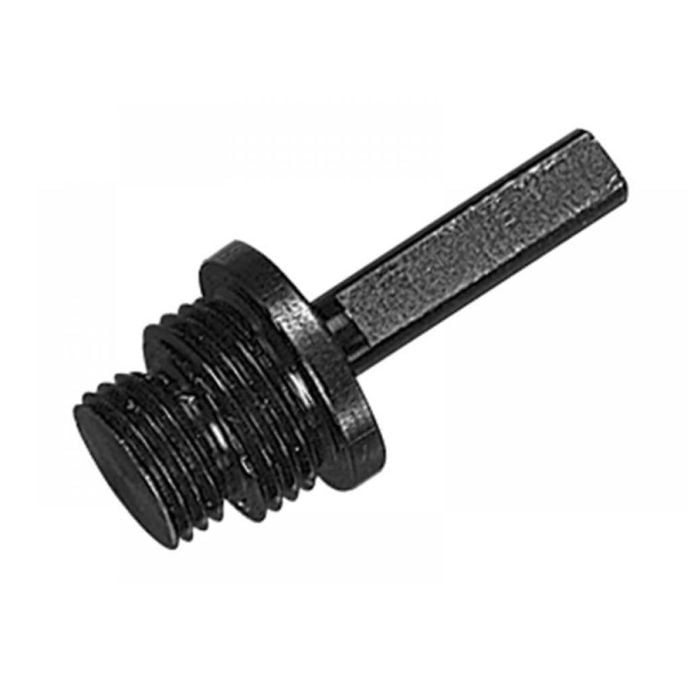

Starrett KA19 Hole Enlargement Arbor For A1, A2 & A10

Starrett KA19 Hole Enlargement Arbor For A1, A2 & A10

The A19 'Oops' Arbor is for use in conjunction with either the A1, A2 or A10 type hole saw arbors (e.g. A1-1, XA2, A1E etc). Replacing the pilot drill, the 'Oops' Arbor allows diameters to be enlarged by attaching a saw of the same size to that of the existing hole, thereby acting as a pilot for the larger diameter saw. Minimum hole enlargement is 4.7mm (3/16") between the pilot saw diameter and the cutting saw diameter.

The A19 ‘Oops’ Arbor works with the following holesaws because they all have the same screw threads (1/2”-20 & 5/8”-18):

• (SH) Constant Pitch HSS Bi Metal Holesaws
• (DH) Dual Pitch HSS Bi Metal Holesaws
• (MPH) TCT Multi Purpose Holesaws
• (CT) Carbide Tipped Holesaws
• (D) Diamond Grit Holesaws

FEATURES

• Use with the A1, A2 or A10 type hole saw arbors
• Replaces the pilot drill bit
• Allows diameters to be enlarged by attaching a saw of the same size to that of the existing hold, therefore acting as a pilot for the larger diameter saw
• Minimum hole enlargment is 4.7mm
• Works with a wide range of Starrett hole saws

SPECIFICATION

• Pack Quantity: x1 Pc
• Part No: A19
