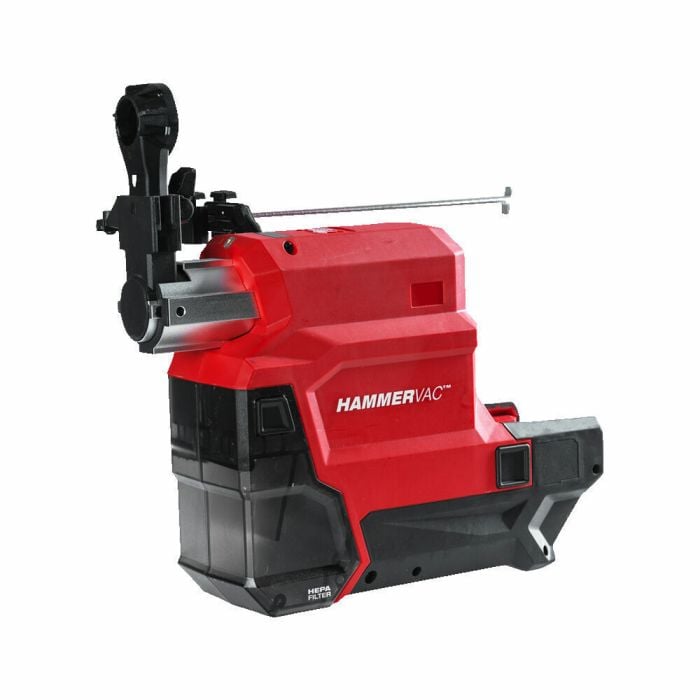

Milwaukee M18 FPDDEXL-0 18v Dust Extraction Attachment For M18 FUEL 32mm SDS+ Hammer Drills

Milwaukee M18 FPDDEXL-0 18v Dust Extraction Attachment For M18 FUEL 32mm SDS+ Hammer Drills 4933478509

The M18 FCDDEXL dust extraction attachment is designed to collect dust efficiently with automatic operation from the tools on/ off trigger switch. Featuring AUTOPULSE™ industry’s first on-board automatic filter cleaning mechanism for an on-tool dust extractor, which increases the air flow efficiency as well as the filter life time.

Translucent dust box allows user to see the current level of dust inside as well as when the dust box is full.

Supplied with 2 nozzle sizes 1x up to ⌀16 mm, 1x up to ⌀32 mm - which can be quickly switched thanks to the quick lock mechanism. Compatible tools (M18 ONEFHP and M18 ONEFHPX hammers) are sold separately.

FEATURES

• The highly efficient HEPA filter collects 99.97% of airborne particles down to 0.3 microns
• Dust box with vacuum port allows user to attach to large dust extractors to suction out dust from the box. Optimised to be used with AS 30 LAC 30 l dust extractor and DEK26 hose clip adapter (4931447295)
• Exchangeable nozzles to adjust to the different drilling diameters
• Dust extraction aluminium tube is adjustable according to the size of the drill bit and length up to 230 mm depth
• Adjustable depth gauge with easily and precisely adjustment buttons for accurate hole depths
• Removable and switchable depth gauge, in case the user prefers the other side
• Bright LED workspace illumination
• Compatible with M18 ONEFHP and M18 ONEFHPX hammers

SPECIFICATION

• Max. Drill Bit Diameter [mm]: 32
• Max. Drill Bit Length [mm]: 260
• Max. Drilling Depth [mm]: 230
• Stroke Length (mm): 203
