Milwaukee M12 3PLKIT-401P Kit 12v Green 360° 3 Plane Laser Accessory Kit Inc x 4.0Ah Battery, Mount & Tripod
The 3PL is a 12v green 360° 3 plane laser that provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, levelling, squaring, and transfers allowing you to easily layout large spaces with one tool. Built with high intensity green diodes to provide maximised visibility - up to 4x better visibility vs red lasers. The high intensity green beams provide a working range of 38 m and up to 100 m with a detector.
Supplied with 1x 4.0Ah M12 B4 Battery, 1x C12 C Charger, 1x Track Clip, 1x Target Plate, 1x Carry Case, 1x LLD50 Laser Line Detector, 1x LM360 Laser Mount & 1x TRP120 Laser Tripod.
FEATURES
Provides all-day run time of 15+ hours with an M12 B4 battery pack (sold separately).
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
Flexible battery system: works with all MILWAUKEE® M12™batteries
SPECIFICATION
Voltage: 12v
Article Number: 4933478103
Battery Type: Li-Ion
Laser Line Colour: Green
IP Protection Class: IP54
Run Time With M12 4.0Ah Battery: 15 Hours
Accuracy: 0.3 mm/m
Compatible Laser Detector: LLD50 / LRD100
Laser Projection: 2x Vertical, 1x Horizontal
Self-Levelling Range: 4.0°
Self-Levelling Time: 3 Seconds
Working Range Detector: 50 Metres
Working Range Visible: 38 Metres

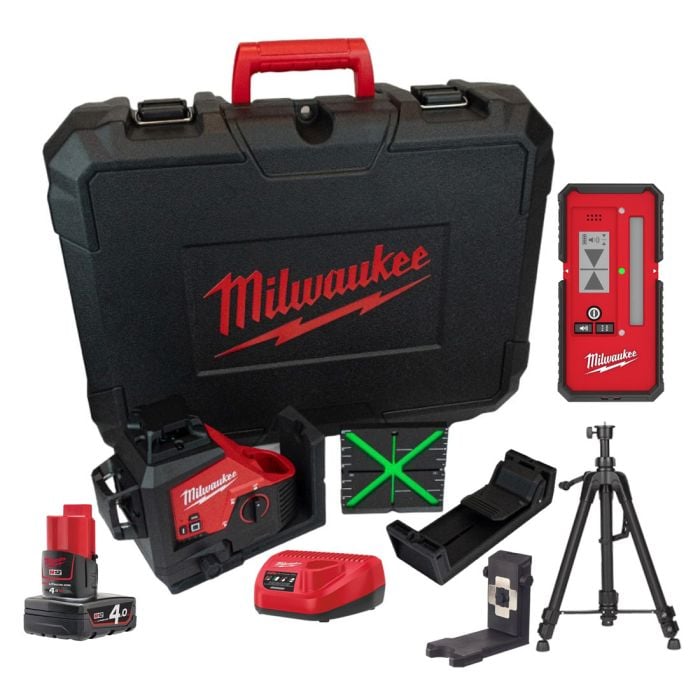

What's in the box
1x M12 3PL 3 Plane Laser
1x M12 B4 4.0Ah Battery
1x C12 C Charger
1x Track Clip
1x Target Plate
1x Carry Case
1x LLD50 Laser Line Detector
1x LM360 Laser Mount
1x TRP120 Laser Tripod
Notes From PTW Expert
The high intensity green beams provide better visibility than red lasers
