THIS PRODUCT IS NO LONGER AVAILABLE
This product is superseded by:Metabo KHE 5-40 SDS Max Combination Hammer Drill
what's in the box
- 1x KHE 5-40 Combination Hammer Drill
- 1x Metabo VibraTech (MVT) Side Handle
- 1x Duster
- 1x Drilling Depth Guide
- 1x Lubricant for Tool Shank End
- 1x Plastic Carry Case
Notes From PTW Expert
Thumbwheel for preselection of the speed and impact rate
Overview

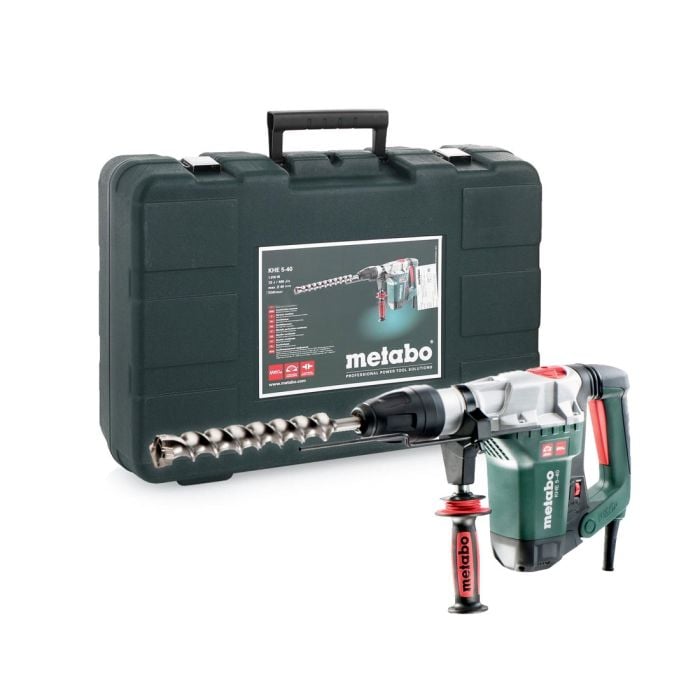

Metabo KHE 5-40 SDS Max Combination Hammer Drill
The KHE 540 SDS-Max Combination Hammer with 2 functions: hammer drilling and chiselling from Metabo provides fast and continuous working thanks to a high impact power of 400 J/s and VTC electronics for constant speed under load. Metal gear housing and a high performance motor with optimised hammer action provide high longevity and reliability. "Metabo MVT" (Metabo Vibration Technology) offers the best possible operator safety and comfort.
FEATURES
- Combination hammer with 2 functions: hammer drilling and chiselling
- Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user's health
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Electronic soft start for precise spot-drilling
- Optimum heat dissipation and low weight thanks to die cast magnesium gear housing
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
- Wear Indication for Carbon Brush
SPECIFICATION
- Max. Single Blow Energy (EPTA): 7.5 J
- Maximum Impact Rate: 3200 bpm
- Rated Input Power: 1010 W
- Drill ø Concrete With Hammer Drills: 40 mm
- Drill ø Masonry With Core Bits: 90 mm
- No-Load Speed: 200 - 350 rpm
- Bit Holder: SDS-Max
- Collar Diameter: 60 mm
- Weight (Without Power Cable): 6.2 kg
- Cable Length: 4 m
- Part No. 110v: 600687390
- Part No. 240v: 600687000
NOISE & VIBRATION
- Sound Pressure Level: 95 dB(A)
- Sound Power Level (LwA): 106 dB(A)
- Uncertainty of Measurement K: 3 dB(A)
- Vibration Hammer Drilling Concrete: 13.5 m/s²
- Uncertainty of Measurement K: 1.5 m/s²
- Vibration Chiseling: 11.5 m/s²
- Uncertainty of Measurement K: 1.5 m/s²
Available in 110v & 240v
