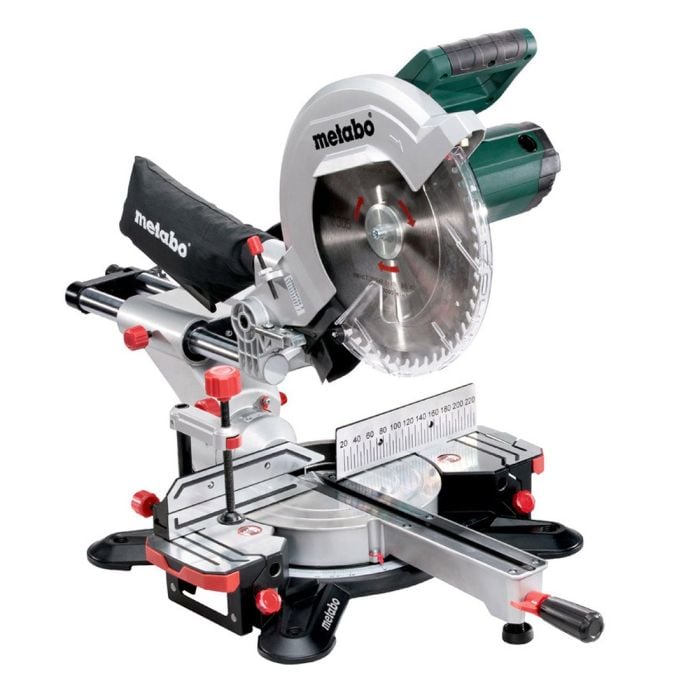

Metabo KGS 305 M 254mm 12" Single Bevel Sliding Mitre Saw

Metabo KGS 305 M 254mm 12" Single Bevel Sliding Mitre Saw

The Metabo KGS 305 M Sliding Mitre Saw is compact, lightweight, and features a sliding function for wide work pieces. Easily transported by one hand thanks the ergonomic design, it delivers fast and precise setting of common angles using stop points.

FEATURES

• Enormous cutting performance due to extremely powerful universal motor and large saw blade
• Sliding function for wide work pieces.
• Compact light weight, suitable also for one-handed transport
• Robust die-cast aluminium design for the highest demands
• Easy transport thanks to ergonomically-designed handles and saw head lock
• Effective dust extraction via integrated dust scoop
• Starting current limitation prevents the actuation of the lock on start-up
• Fast and precise setting of common angles using stop points
• Laser for exact display of the cutting line (mains powered, no batteries required)
• Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
• Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
• Sliding high rear fence profiles for safe sawing
• Material clamp for secure fixing of the work piece from the top or front
• Depth guide for easy creation of grooves
• Saw head can be inclined to the left, with additional angle range for undercuts
• All scales and operating elements are visible from the working position and can be operated intuitively
• Easy saw blade change by means of spindle lock- no dismantling of the pendulum guard required

SPECIFICATION

• Dimensions: 850 x 515 x 615 mm
• Support Surface: 340 x 775 mm
• Maximum Cutting Width (90° / 45°): 305 / 205 mm
• Maximum Cutting Depth (90° / 45°): 105 / 67 mm
• Cutting Capacity (90° / 90°): 305 x 105 mm
• Cutting Capacity (45° / 45°): 205 x 67 mm
• Turntable Setting (Left/Right): 47° / 47°
• Saw Blade Tilt (Left/Right): 47° / 2°
• Saw Blade: 305 x 30 mm
• Rated Input Power (S1 100%): 1600 W
• Rated Input Power (S6 20%): 2000 W
• No Load Speed: 3700 rpm
• Revolutions at Rated Load: 2600 rpm
• Cutting Speed: 60 m/s
• Weight: 19.6 kg

NOISE & VIBRATION

• Sound Pressure Level: 97 dB(A)
• Sound Power Level: 104 dB(A)
• Uncertainty of Measurement K: 3 dB(A)

Available in 110v & 240v
