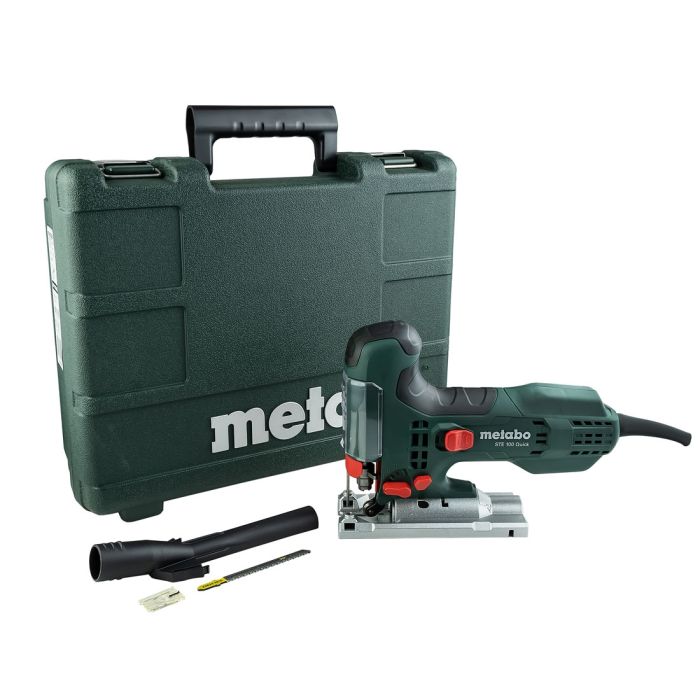

Metabo 601100500 STE 100 Quick Jigsaw 240v

Metabo 601100500 STE 100 Quick Jigsaw 240v

This Metabo 601100500 STE 100 Quick Jigsaw 240v is an extremely slim jigsaw for perfect handling in any application. Its named 'Metabo Quick' for tool-free saw blade change and with automatic ejection.

FEATURES

• Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
• Metabo Quick for tool-free saw blade change and with automatic ejection
• Selectable chip blowing function ensures free view of cutting line
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised stroke rates, which remain almost constant under load
• Extraction possibility by means of connecting an all-purpose vacuum cleaner

SPECIFICATION

• Voltage: 240 v
• Rated Input Power: 710 w
• Output Power: 470 w
• Cutting Depth Wood: 100 mm
• Cutting Depth NF Metal: 25 mm
• Cutting Depth Sheet Steel: 10 mm
• Swivel Range From / to: - 45 / + 45 °
• Pendulum Stroke Levels: 4
• Strokes in Idle: 1000 - 3100 rpm
• Saw Blade Stroke: 22 mm
• Weight (Without Power Cable): 2 kg
• Cable Length: 4 m

NOISE & VIBRATIONS

• Sound Pressure Level: 86 dB(A)
• Sound Power Level (LwA): 97 dB(A)
• Uncertainty of Measurement K: 3 dB(A)
• Vibration Sawing Wood: 13 m/s²
• Vibration Sawing Metal: 13.7 m/s²
• Uncertainty of Measurement K: 1.5 m/s²
