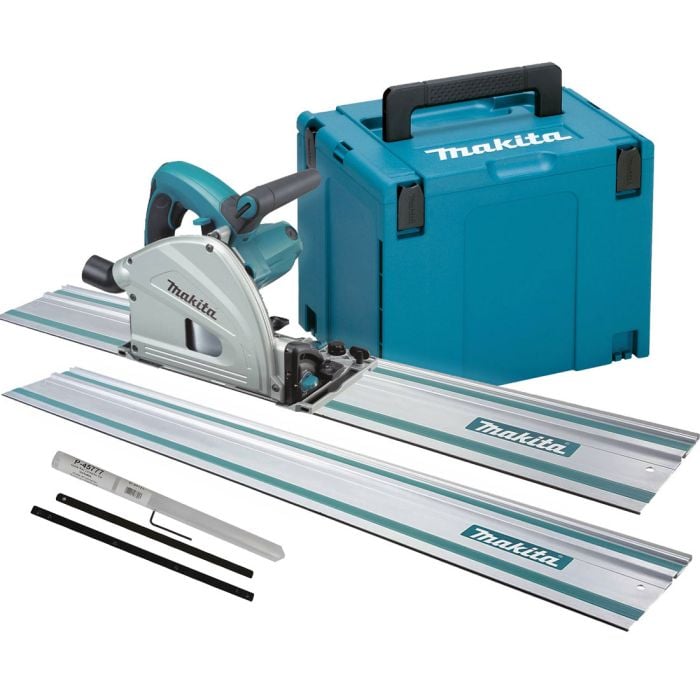

Makita SP6000J2 Plunge Saw 165mm inc 2x Guide Rails, Joining Bar & Makpac Case

Makita SP6000J2 Plunge Cut Saw 165mm inc 2x Guide Rails, Single Joining Bar & Makpac Carry Case

The Makita 165mm Plunge Cut Circular Saw and 1.5m (59”) Guide Rails work together to produce accurate cuts with minimal tear-out. The saw combines a powerful 12 AMP motor and a large cutting capacity with magnesium components for less weight and electronic speed control to maintain constant speed under load for smooth cutting and a splinter-free mirror finish. The SP6000J2 is a more portable option to a table saw for select applications, and it is ideal for use on the jobsite or in a workshop.

Precision Settings and Features for Quality Cuts

The SP6000J2 saw has a bevel capability of -1° to 48° with positive stops at 22.5° and 45°. The saw delivers precise cutting, as the position of the blade enters the material on the same cutting line whether cutting straight or bevel. In addition, the saw has close-to-wall cutting (18mm) for expanded cutting applications. The built-in depth stop allows a preliminary cut of 2mm to be performed before the entire material is cut through for clean and splinter-free cutting.

12 AMP Direct-Drive Power for Smooth Cutting

The SP6000J2 has a powerful 12 AMP motor with soft start for smooth start-ups, and Electronic Speed Control to maintain a constant speed under load for smooth cutting. The variable speed dial control (2,000 – 5,200 RPM) allows the user to set the speed for optimum performance in a variety of materials. The built-in torque limiter helps prevent motor burnout, with an electric brake for added productivity.

Precision Cuts and Ease of Use

The saw includes a range of convenient features, including a large top handle, an electric brake for more productivity, as well as a lock-lever that attaches the saw to the rail system so the saw stays on the anodised aluminium rail when positioned for a bevel cut. The smooth and convenient plunge release lever is designed for operator comfort, and the depth adjustment with large scale is easy to set.

Best in Class for a Range of Applications

The SP6000J2 is engineered for cutting sheet material, finish work, trim work, and remodelling. It is ideal for a broad range of trades, including cabinet installers, cabinet manufacturers, finish carpenters, stair installers, flooring installers, woodworkers, and general contractors seeking a best-in-class 165mm Plunge Circular Saw.

FEATURES

• 12 AMP motor with variable speed control dial (2,000 - 5,200 RPM) for optimum performance in a variety of materials
• Large cutting capacity (55mm max cut at 90° and 39mm at 45°)
• Bevel capability (-1 to 48°) with positive stops at 22.5° and 45°
• Close to the wall cutting (18mm) for expanded cutting applications
• Electronic speed control maintains constant speed under load for smooth cutting
• Built-in current limiter helps prevent motor burnout
• Soft start feature for smooth start-ups
• Easy-to-set depth adjustment with large scale
• Smooth and convenient plunge release lever for operator comfort
• Magnesium components deliver a well balanced and lightweight saw at only 4.2 Kg
• Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
• Precise bevel cutting as the position of the blade enters the material on the same cutting line whether cutting straight or bevel
• Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
• Blade wrench attaches to the saw for fast and convenient blade changes
• Built-in depth stop allows a preliminary cut of 2mm to be performed before the entire material is cut through for clean and splinter-free cutting
• Large rear dust port directs material away from the operator and easily connects to a vacuum system
• 1.5 metre Guide Rails (x2 + P-45777 single joining bar supplied) interact with the saw base to provide smooth, perfect, dead-on straight or bevel cutting
• Saw base is attachable to other guide rail systems in the market (please confirm before purchase)

SPECIFICATION

• Depth of Cut @ 90°: 55 mm
• Blade Diameter: 165 mm
• Depth of Cut @ 45º: 39 mm
• Bore Diameter: 20 mm
• Input Wattage: 1300 w
• No-Load Speed: 2,000 - 5,800 rpm
• Net Weight: 4.2 kg

NOISE & VIBRATION

• Noise Sound Pressure: 91 dB(A)
• Noise Sound Power: 102 dB(A)
• Noise K Factor: 3 dB(A)
• Vibration K Factor: 1.5 m/sec²
• Vibration: Cutting Chipboard: 2.5 m/sec²

Available In 110v & 240v
