Makita SK105GDZ 10.8v CXT Self Leveling Cross Line Green Laser Level Body Only

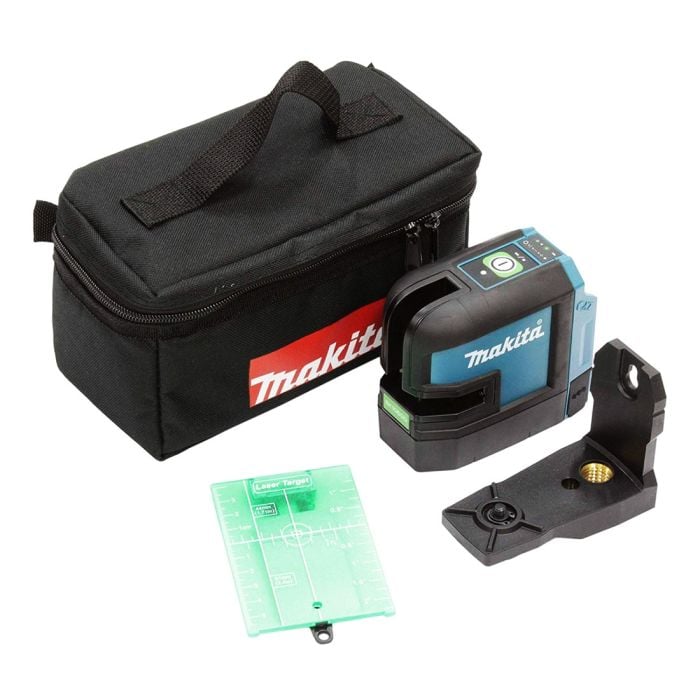

Makita SK105GDZ 10.8v/12v MAX CXT Self Levelling Cross Line Green Laser Level Body Only with Magnetic L-Adaptor Mount, Carry Bag and Laser Target Card

The Makita SK105GDZ 12V MAX CXT Lithium-Ion Self-Levelling Cross-Line Green Beam Laser gives the user a cordless solution for level, align, and plumb applications. Depending on ambient light in the working environment, the SK105GDZ has a line visibility range up to 35m (10m more than the red beam version) and is detectable up to 80m with a Makita Laser Detector (sold separately).

The SK105GDZ has a bright 525 nm class II green laser with ±0.3 mm/m = ±3.0 mm at 10m for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-levelling line stability is achieved in up to 3 seconds for increased productivity.

For longer run time, all 10.8V/12V MAX CXT cordless tools are also compatible with the 10.8V/12V MAX CXT Lithium-Ion 4.0Ah battery (BL1040B sold separately). 10.8V/12V MAX CXT™ lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 10.8V/12V MAX CXT™ series, combining performance with superior ergonomics in a compact size.

FEATURES

• Selectable horizontal/vertical cross reference lines required for level, align and plumb applications
• 10.8V/12V MAX CXT battery delivers the convenience of a rechargeable tool battery and up to 20 hours of continuous run-time (battery not included)
• Green line visibility range up to 35m depending on ambient light and detectable up to 80m with Makita Laser Detector
• Bright 525 nm class II green laser for best-in-class visibility with ±0.3 mm/m = ±3.0 mm at 10m for best-in-class accuracy
• Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
• Fast self-levelling line stability is achieved in up to 3 seconds for increased productivity
• Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
• Self-levelling is correctable up to 4º of slope allowing operation on uneven surfaces
• Dust and water resistance with IP 54 rating for increased durability
• Highly protected laser windows are recessed into the housing for increased durability
• Rubberised housing over-mold for increased protection
• Simplified one button user interface for ease of operation
• Low laser brightness mode conserve battery power for extended run-time performance
• Power connector port allows 18V LXT Lithium-Ion Battery to be used as alternate power source with Power Source Adaptor (DEAADP05) and Adaptor Cord (adaptor and cord sold separately)
• Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods

SPECIFICATION

• Voltage: 10.8V / 12V MAX CXT
• Laser Colour: Green
• Beam Direction/Fan Angle: Vertical >160°, Horizontal >180°
• Range: 35m
• Range with Receiver: 80 m
• Self Levelling Accuracy: ±0.3 mm/m = ±3.0 mm @ 10m
• Horizontal/Vertical Line Accuracy: ±0.3 mm/m
• Self-Levelling Range: ± 4 º
• Self-Levelling Time: < 3 seconds
• Laser Type: 525 ± 5 nm, Class 2
• Laser Line Width at 5m Distance: < 2mm
• Approx. Continuous Run Time (4.0Ah): 20 hrs
• Operating Temperature Range: -10 - 50 ºC
• Storage Temperature Range: -25 - 70 ºC
• Tripod Thread: 1/4 "
• Net Weight: 0.67 - 0.84 kg
• Pulse Mode w/ Detector: Yes
• Pendulum Lock: Yes
